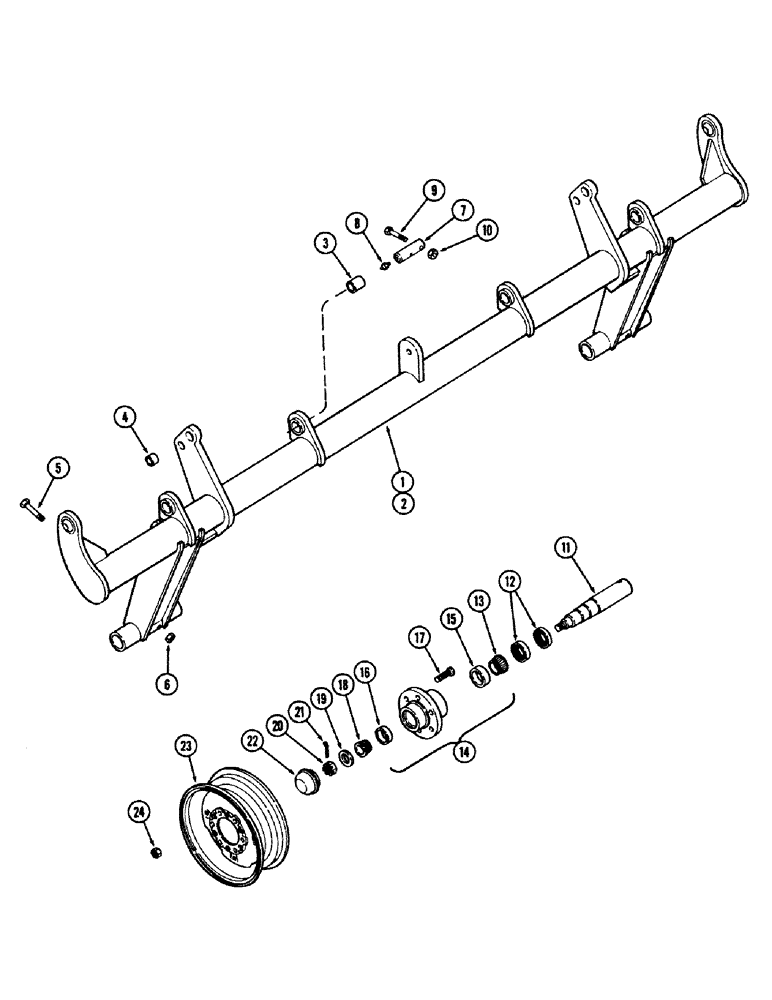

Запчасти Case IH E30 (008) - CENTER ROCKSHAFT AND WHEELS

1

T53486

ROCKSHAFT

- (Before serial no. 1625038)

1шт.

2

T56662

ROCKSHAFT

- (Serial no. 1625038 and after)

1шт.

3

T51708

BUSHING

4шт.

4

T56590

BUSHING

- cylinder mount 1-1/2 x 1-1/4 x 1-1/2" (38.1 x 31.8 x 38.1 MM)

2шт.

5

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

6

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

4шт.

7

T51587

PIN

- retainer

4шт.

8

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

10

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

4шт.

11

T52724

SPINDLE

4шт.

12

F37383

SEAL

- grease

8шт.

13

T33023

ROLLER BEARING

CONE - bearing inner 1-13/16" ID (46.0 MM)

4шт.

14

T52908

HUB

ASSEMBLY - with cups and bolts

4шт.

15

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing inner 3-1/4" OD (82.6 MM)

1шт.

16

A30580

BEARING CUP

CUP - bearing outer 2-7/8" OD (73.0 MM)

1шт.

17

T52907

BOLT

- hub

6шт.

18

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing outer 1-3/8" ID (34.9 MM)

4шт.

19

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

4шт.

20

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

21

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

22

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

4шт.

23

T39714

WHEEL

- 15 x 10" (381.0 x 254.0 MM)

4шт.

24

G49041

WHEEL NUT

- hub bolt

24шт.
