(092[2]) - SCRAPERS, FRONT AND REAR, WING GANG, 9 INCH (228.6 MM), MODEL 9-360

Запчасти Case IH E30 (092[2]) - SCRAPERS, FRONT AND REAR, WING GANG, 9 INCH (228.6 MM), MODEL 9-360

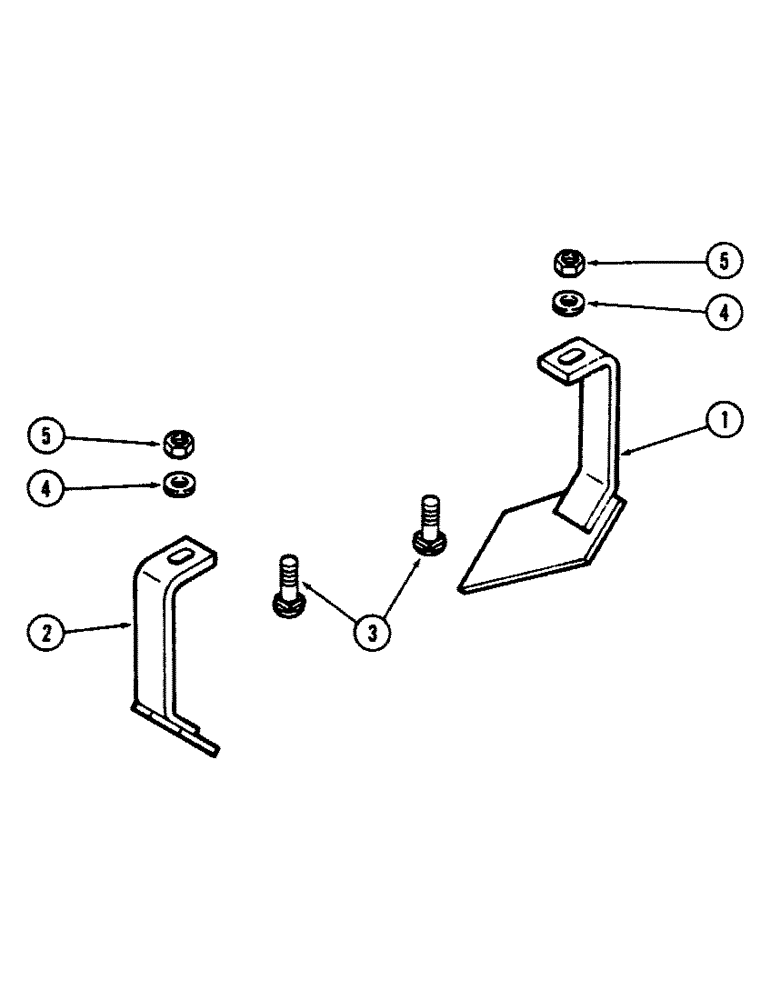

Схема запчастей Case IH E30 - (092[2]) - SCRAPERS, FRONT AND REAR, WING GANG, 9 INCH (228.6 MM), MODEL 9-360
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T51597

SCRAPER

- front LH and rear RH

20шт.

2

T51596

SCRAPER

- front RH and rear LH

20шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

40шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

40шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

40шт.

1

T51597

SCRAPER

- front LH and rear RH

22шт.

2

T51596

SCRAPER

- front RH and rear LH

22шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

44шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

44шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

44шт.

1

T51597

SCRAPER

- front LH and rear RH

26шт.

2

T51596

SCRAPER

- front RH and rear LH

26шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

52шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

52шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

52шт.
