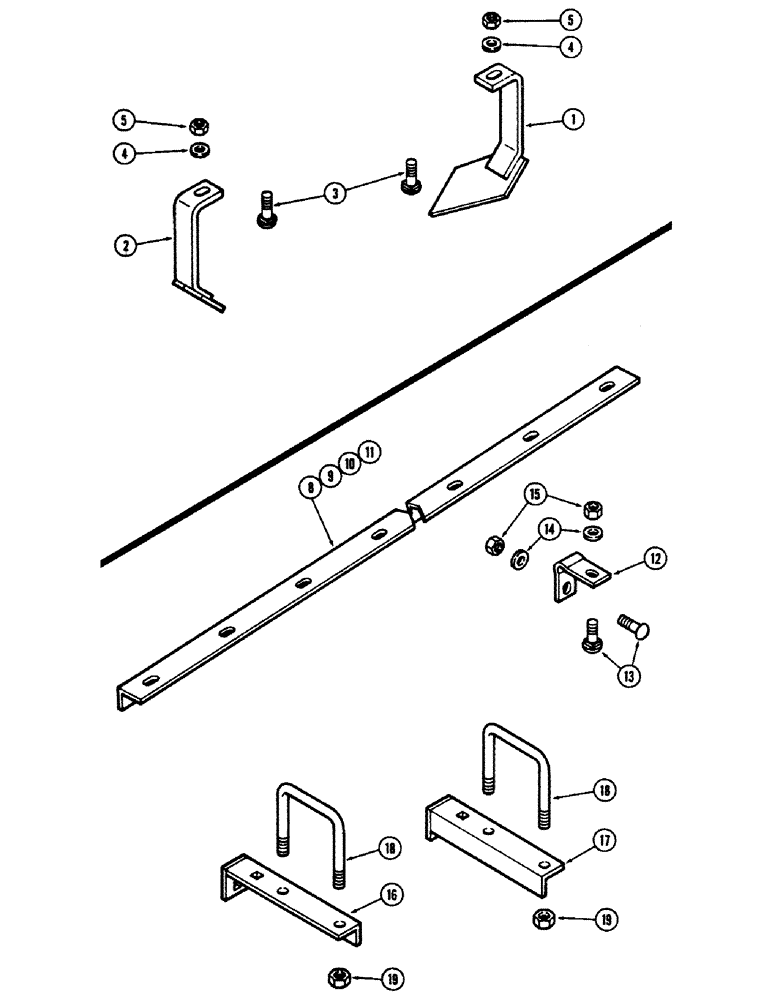

Запчасти Case IH E30 (090) - SCRAPERS, FRONT AND REAR, CENTER GANG
№
Артикул
Название
Примечание
Количество
1
T51597
SCRAPER
- front LH and rear RH
15шт.
2
T51596
SCRAPER
- front RH and rear LH
15шт.
3
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5)
30шт.
4
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge
30шт.
5
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex
30шт.
1
T51597
SCRAPER
- front LH and rear RH
13шт.
2
T51596
SCRAPER
- front RH and rear LH
13шт.
3
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5)
26шт.
4
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge
26шт.
5
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex
26шт.
8
T52041
BAR
- scraper (Front LH and RH) 69-3/4" (1771.65 MM), center gang 9 inch (228.6 MM) spacing
2шт.
9
T52033
BAR
- scraper (Rear LH and RH) 60-1/2" (1536.7 MM), center gang 9 inch (228.6 MM) spacing
2шт.
12
T51592
BRACKET
- scraper bar, center gang 9 inch (228.6 MM) spacing
12шт.
13
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5), scraper bars - center gang 9 inch (228.6 MM) spacing
24шт.
14
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge, scraper bars - center gang 9 inch (228.6 MM) spacing
24шт.
15
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex, scraper bars - center gang 9 inch (228.6 MM) spacing
24шт.
16
T52031
MOUNTING PARTS
MOUNT - scraper bar (Rear LH), center gang 9 inch (228.6 MM) spacing
1шт.
17
T52032
MOUNTING PARTS
MOUNT - scraper bar (Rear RH), center gang 9 inch (228.6 MM) spacing
1шт.
18
T51593
BOLT
U BOLT, scraper bars - center gang 9 inch (228.6 MM) spacing
2шт.
19
131-385
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex, scraper bars - center gang 9 inch (228.6 MM) spacing
4шт.
10
T52044
BAR
- scraper (Front RH and LH) 68-3/4" (1746.25 MM), 10-1/2 inch (266.7 MM) spacing
2шт.
11
T52036
BAR
- scraper (Rear RH and LH) 5/8-1/8" (1476.38 MM), 10-1/2 inch (266.7 MM) spacing
2шт.
12
T51592
BRACKET
- scraper bar, 10-1/2 inch (266.7 MM) spacing
12шт.
13
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5), 10-1/2 inch (266.7 MM) spacing
24шт.
14
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge, 10-1/2 inch (266.7 MM) spacing
24шт.
15
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex, 10-1/2 inch (266.7 MM) spacing
24шт.
16
T52031
MOUNTING PARTS
MOUNT - scraper bar (Rear LH), 10-1/2 inch (266.7 MM) spacing
1шт.
17
T52032
MOUNTING PARTS
MOUNT - scraper bar (Rear RH), 10-1/2 inch (266.7 MM) spacing
1шт.
18
T51593
BOLT
U BOLT, 10-1/2 inch (266.7 MM) spacing
2шт.
19
131-385
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex, 10-1/2 inch (266.7 MM) spacing
4шт.
Выбрано товаров: 30
