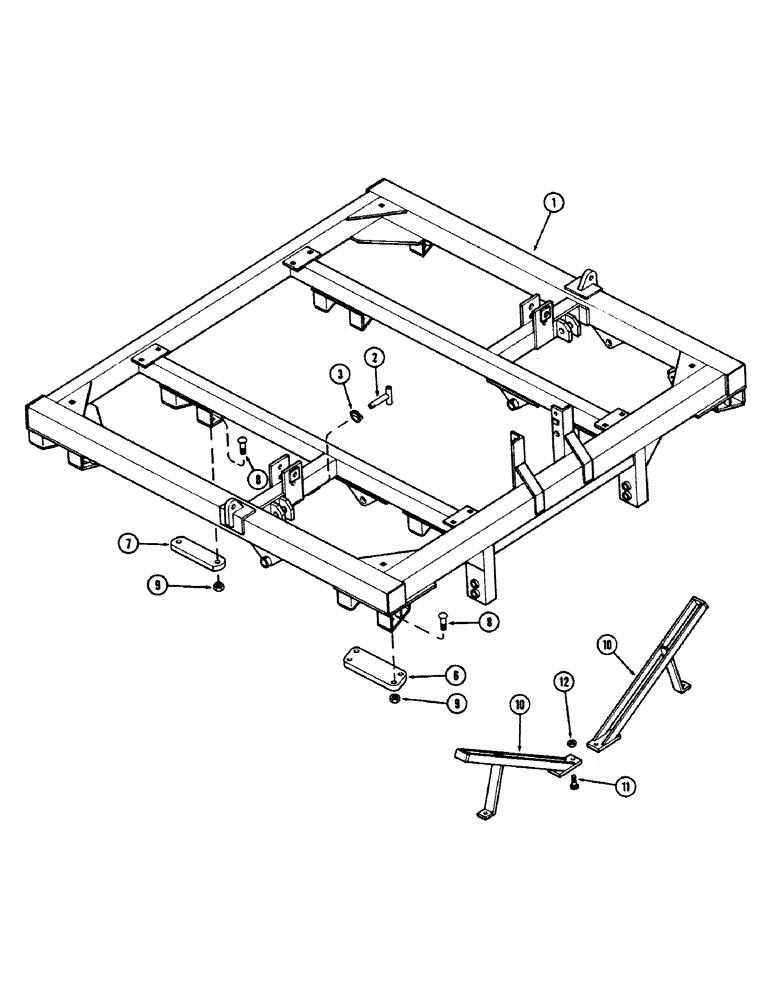

Запчасти Case IH E30 (006) - MAIN FRAME

1

T52700

FRAME - main

1шт.

2

T55871

PIN

- transport

1шт.

3

A30338

PIN

- klik

1шт.

6

T52704

PLATE - gang clamp

4шт.

7

T51585

PLATE - gang clamp

4шт.

8

111-776

BOLT,Short NK, 1" -8 x 3", G5

- 1 x 3" NC carriage (Grade 5)

24шт.

9

131-698

LOCK NUT,1"-8, GB

NUT - lock 1" NC hex

24шт.

10

T54072

REST - gang

4шт.

11

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

12шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

12шт.
