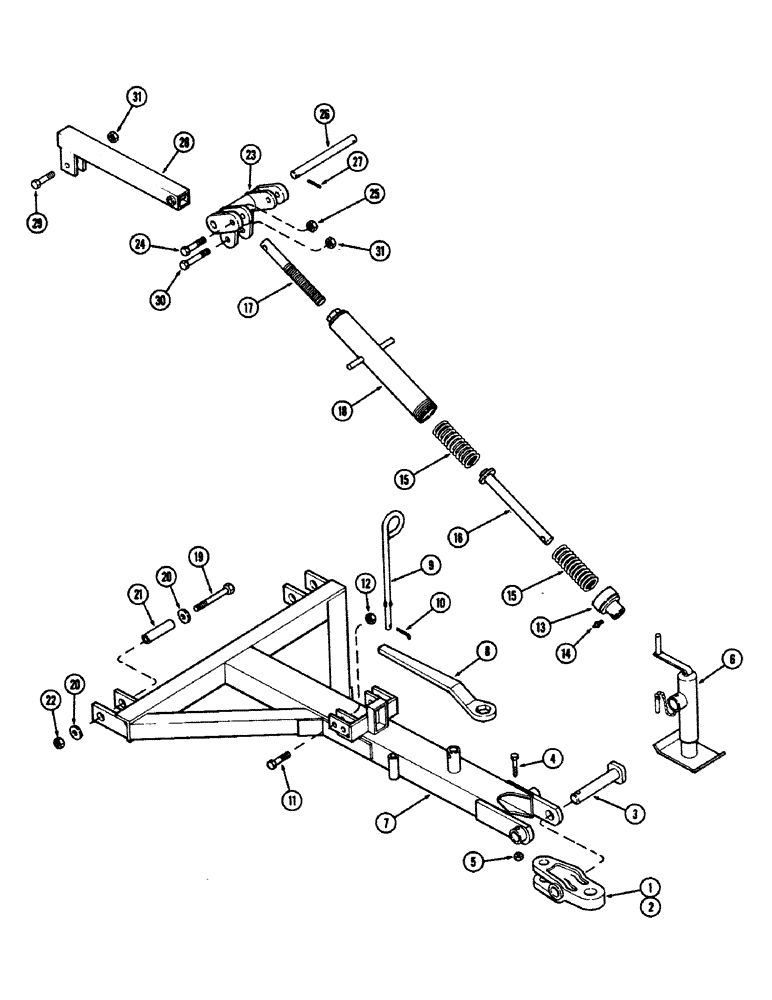

Запчасти Case IH E30 (004) - HITCH, SERIAL NUMBER 1606726 AND AFTER

1

T54658

CLEVIS

- hitch

1шт.

2

T55873

CLEVIS

- hitch (T54658 can also be used)

1шт.

3

T55130

PIN

- clevis

1шт.

4

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

1шт.

6

T56247

JACK

1шт.

7

T55131

TOW BAR

TONGUE - pull

1шт.

8

T54659

WRENCH

1шт.

9

T53995

HOLDER - hose

1шт.

10

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

11

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

12

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

13

T51572

CAP

2шт.

14

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

15

T51576

SPRING

4шт.

16

T51573

ROD

- piston

2шт.

17

T51574

ROD

- threaded

2шт.

18

T52699

HOUSING

- spring

2шт.

19

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- 3/4 x 7" NC hex (Grade 5)

2шт.

20

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

4шт.

21

T51569

BUSHING

2шт.

22

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

23

T52701

BRACKET - pivot control

1шт.

24

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

25

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

26

T52702

PIN - pivot

1шт.

27

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

28

T52703

ROD - tongue control

1шт.

29

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

30

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

31

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.
