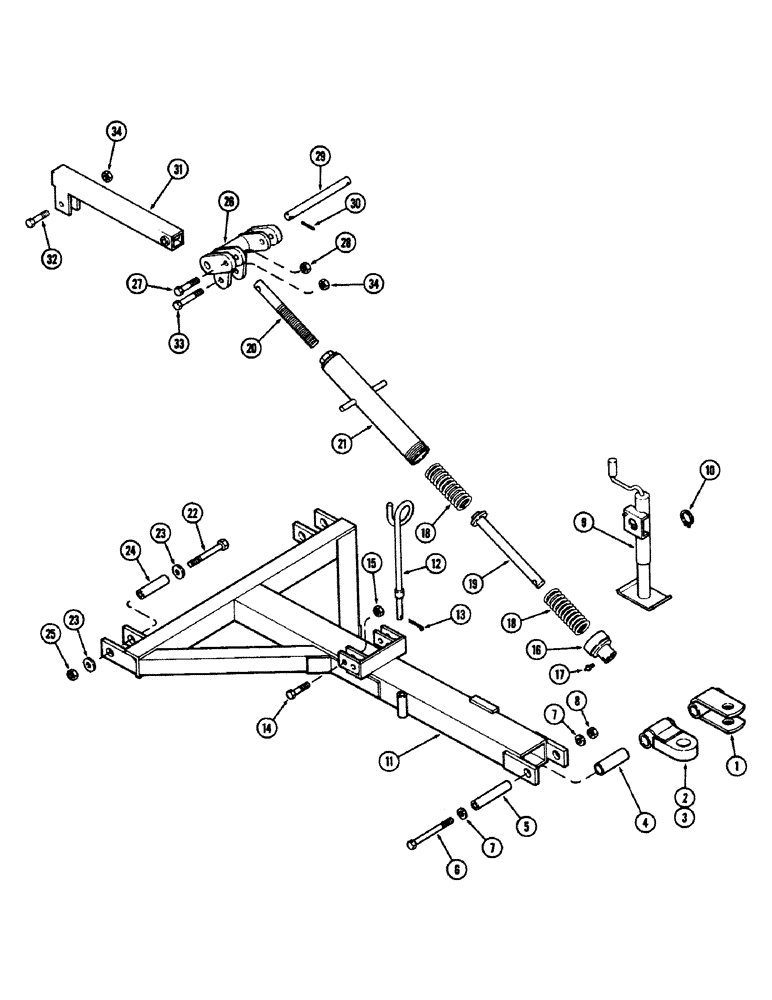

Запчасти Case IH E30 (002) - HITCH, BEFORE SERIAL NUMBER 1606726

1

T52519

CLEVIS

- hitch

1шт.

2

T51967

CLEVIS

- hitch

1шт.

3

T54095

CLEVIS

- hitch (T51967 can also be used)

1шт.

4

T51565

BUSHING

- clevis

1шт.

5

T51566

BUSHING

- clevis

1шт.

6

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- 3/4 x 9" NC hex (Grade 5)

1шт.

7

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

2шт.

8

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

9

T51689

JACK

1шт.

10

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

11

T52698

TOW BAR

TONGUE - pull (Order 1-T55130 and 1-T55131)

1шт.

12

T51570

HOLDER - hose

1шт.

13

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

14

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

15

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

16

T51572

CAP

2шт.

17

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

18

T51576

SPRING

4шт.

19

T51573

ROD

- piston

2шт.

20

T51574

ROD

- threaded

2шт.

21

T52699

HOUSING

- spring

2шт.

22

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- 3/4 x 7" NC hex (Grade 5)

2шт.

23

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

4шт.

24

T51569

BUSHING

2шт.

25

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

26

T52701

BRACKET - pivot control

1шт.

27

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

28

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

29

T52702

PIN - pivot

1шт.

30

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

31

T52703

ROD - tongue control

1шт.

32

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

33

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

34

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.
