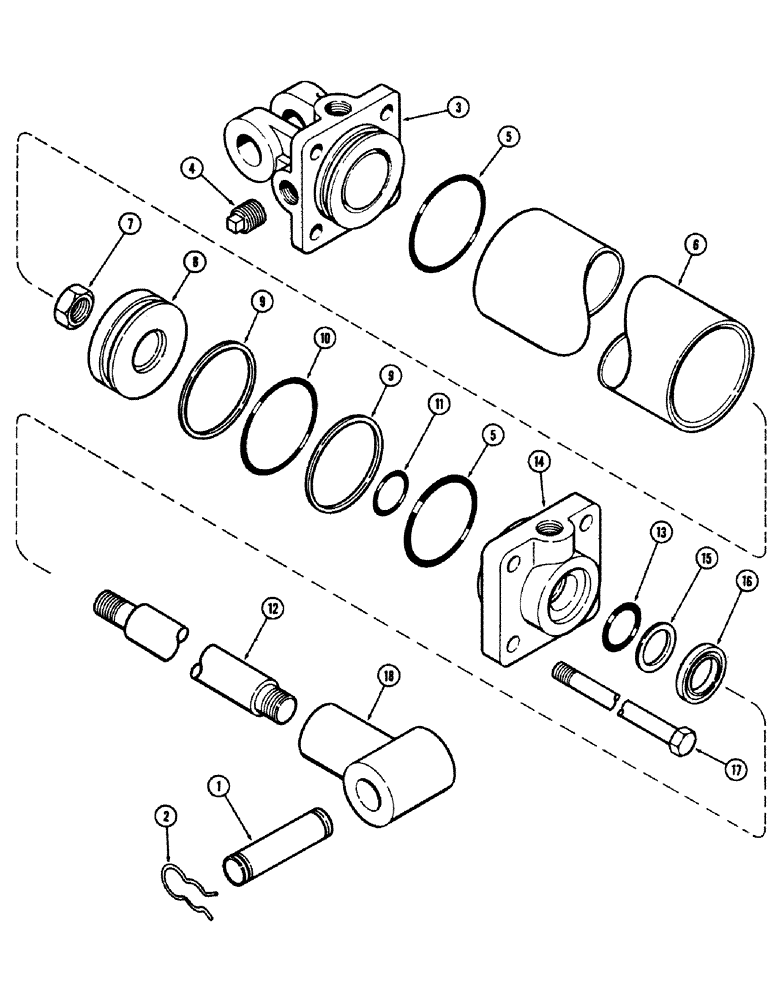

Запчасти Case IH E30 (024) - T52674 CYLINDER 4 X 24 INCH (101.6 X 609.6 MM)

T52674

CYLINDER - hydraulic complete

2шт.

1

T52925

PIN

- clevis

1шт.

2

T52926

CLIP

2шт.

3

T52920

HEAD

BASE - cylinder

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T52928

O-RING

O RING - 3-41/64 x 3-15/64 x .210" (92.47 x 82.19 x 5.56 MM)

2шт.

Part of seal kit P/N T63123

1шт.

6

T52919

TUBE - cylinder

1шт.

7

131-1148

NUT

- piston rod 1-1/4"

1шт.

8

T52922

PISTON

1шт.

9

A23535

OIL SEAL

WASHER - backup

2шт.

Part of seal kit P/N T63123

1шт.

10

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

O RING - 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 MM)

1шт.

Part of seal kit P/N T63123

1шт.

11

A59066

O-RING,1.239" ID x 1.379" OD

O RING - 1-3/8 x 1-1/4 x 1/16" (34.9 x 31.8 x 1.6 MM)

1шт.

Part of seal kit P/N T63123

1шт.

12

T52918

ROD - piston

1шт.

13

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

O RING - 2-1/8 x 1-3/4 x 3/16" (53.9 x 44.5 x 4.8 MM)

1шт.

Part of seal kit P/N T63123

1шт.

14

T52921

HEAD

- cylinder

1шт.

15

T52933

WASHER

- backup

1шт.

Part of seal kit P/N T63123

1шт.

16

T52934

WIPER SEAL

WIPER

1шт.

Part of seal kit P/N T63123

1шт.

17

T52924

ROD - tie

4шт.

18

T52923

CLEVIS

1шт.

T63123

KIT

- seal, Includes Refs. 5, 9, 10, 11, 13, 15 and 16

1шт.
