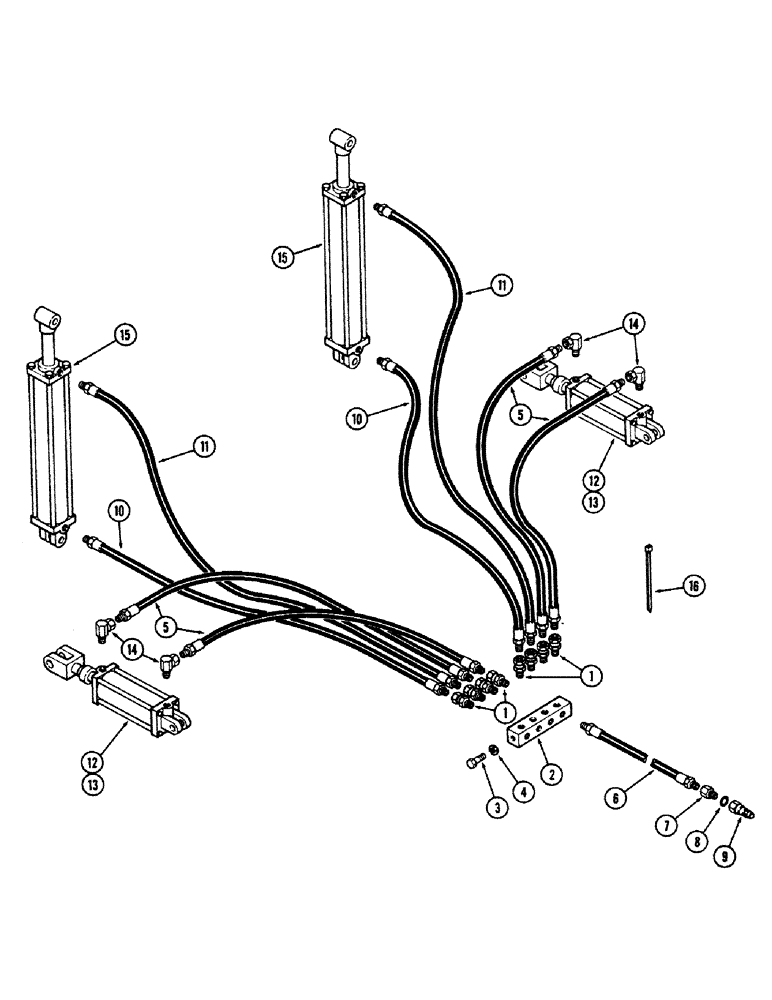

Запчасти Case IH E30 (018) - HYDRAULICS

1

218-1419

UNION,1/2" NPTF Male x 1/2" NPSM, Fem Sw

RESTRICTOR - with 3/32" (2.38 MM) orifice

8шт.

2

T52723

MANIFOLD

1шт.

3

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

T52731

HOSE - 3/8 x 70" (9.5 x 1778.0 MM)

4шт.

6

T56419

HOSE - 1/2 x 144" (12.7 x 3657.6 MM)

4шт.

7

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

- 1/2 x 7/8" (12.7 x 22.2 MM)

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING - 3/4 x 15/16 x 3/32" (19.05 x 23.8 x 2.4 MM)

1шт.

9

A147889

COUPLING, BREAK AWAY

COUPLER - male (See page 100)

4шт.

10

T52732

HOSE - 3/8 x 84" (9.5 x 2133.6 MM)

2шт.

11

T52733

HALF-COLLAR

HOSE - 3/8 x 108" (9.5 x 2743.2 MM)

2шт.

12

T52727

CYLINDER

- hydraulic 4 x 8" (101.6 x 203.20 MM) Before serial no. 1625038 (See page 20)

2шт.

13

T56660

CYLINDER

- hydraulic 4 x 8" (101.6 x 203.2 MM) Serial no. 1625038 and after (See page 22)

2шт.

14

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2 x 1/2" (12.7 x 12.7 MM)

4шт.

15

T52674

CYLINDER - hydraulic 4 x 24" (101.6 x 609.6 MM) (See page 24)

2шт.

16

T54520

STRAP

TIE - hose

4шт.

B17426

GASKET MAKER FLUID

SEALANT - pipe (Not shown)

1шт.
