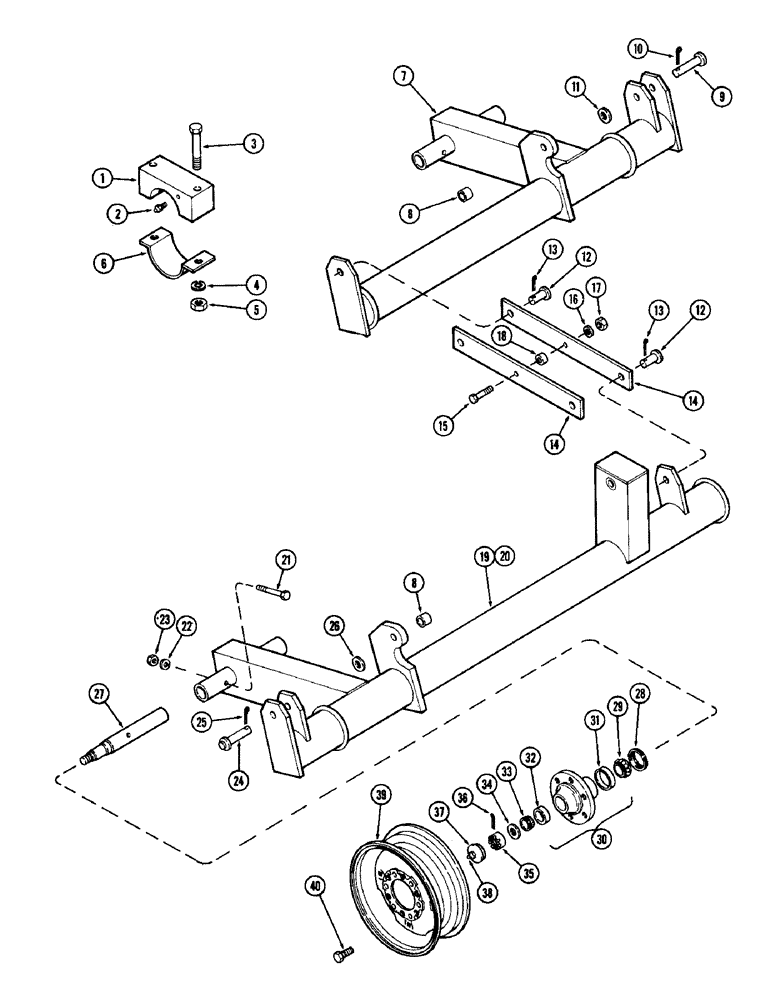

Запчасти Case IH DOT 31 (06) - CENTER AXLES AND WHEELS

1

T54947

BEARING

- axle 5-1/2" diameter

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

3

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

129-108

NUT,3/4"-10, G5

8шт.

6

T54755

CLAMP

- axle bearing 5-1/2" diameter

4шт.

7

T54874

AXLE - left center

1шт.

8

T55158

BUSHING

- axle

2шт.

9

T54750

PIN

- 1 x 4-3/8"

1шт.

10

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

11

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

12

T54954

PIN - 1 x 2-1/2"

2шт.

13

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

14

T54950

STRAP - axle

2шт.

15

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-529

NUT,3/8"-16, G5, Hvy

1шт.

18

T54951

SPACER - axle strap

1шт.

19

T54876

AXLE

- right center

1шт.

20

T55424

AXLE

- right center (T54876 can also be used)

1шт.

21

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

T54953

PIN

- 1 x 4-3/4"

1шт.

25

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

26

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

27

T56597

SPINDLE

4шт.

28

T23709

SEAL

- grease

4шт.

29

G57452

ROLLER BEARING

CONE - bearing inner

4шт.

30

T27113

HUB

ASSEMBLY - with cups

4шт.

31

G57451

BEARING, CUP

CUP - bearing inner

1шт.

32

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

33

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

4шт.

34

195-50

WASHER,7/8" x 2" x .165"

- 2 x 5/16" x 8 gauge

4шт.

35

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

36

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

37

T54729

DUST CAP

CAP ASSEMBLY - dust with fitting

4шт.

38

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

39

A57879

RIM

WHEEL - 15 x 8"

4шт.

40

A29912

BOLT

BOLT - wheel

24шт.
