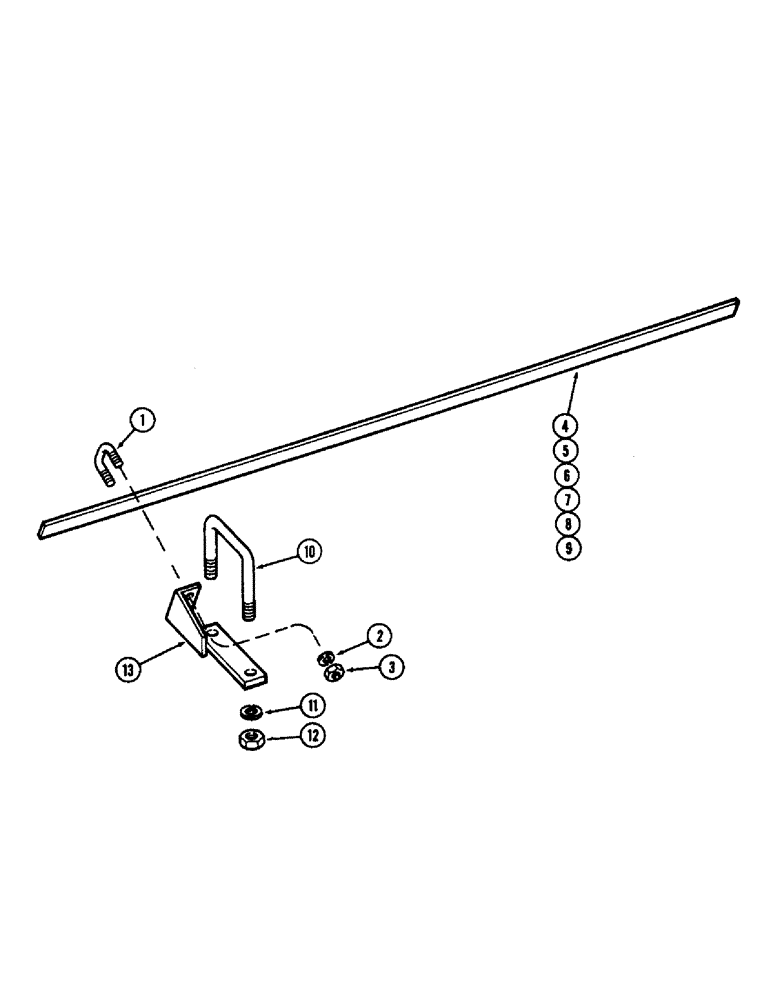

Запчасти Case IH DOT 31 (62[2]) - SCRAPER BARS, WING GANG, 31 FOOT

1

T54786

BOLT

U BOLT, 31 foot

14шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 31 foot 1/2"

28шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

31 foot 1/2"-13, G5

28шт.

8

T54935

BAR - scraper 106" (Front RH and front LH), 31 foot

2шт.

9

T54852

BAR - scraper 116" (rear RH and rear LH), 31 foot

2шт.

10

T54958

BOLT

U BOLT, 31 foot

2шт.

11

192-29

LOCK WASHER,7/8"

31 foot 7/8"

4шт.

12

129-109

NUT,7/8"-9, G5

31 foot 7/8"-9, G5

4шт.

13

T54943

SUPPORT - scraper arm, 31 foot

2шт.
