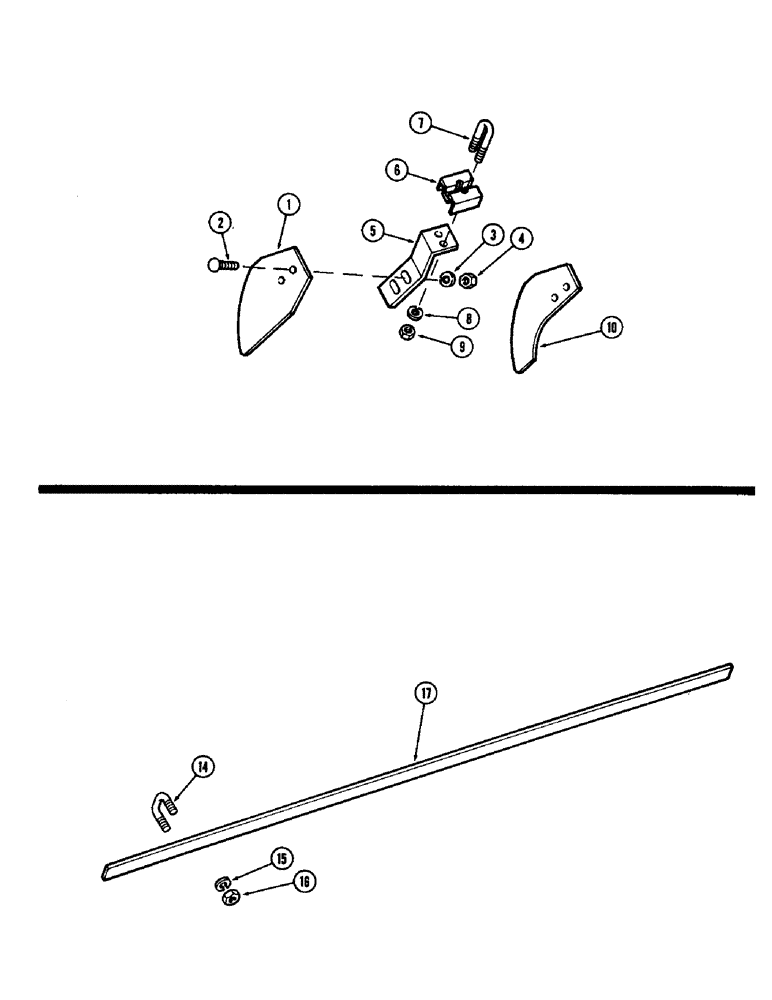

Запчасти Case IH DOT 31 (60) - SCRAPERS, FRONT & REAR

1

T54788

HALF BLADE

BLADE - scraper

1шт.

2

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

T54789

ARM

- scraper

1шт.

6

T54999

BRACKET

CLAMP - scraper bar

1шт.

7

T54785

BOLT

U BOLT

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

T54790

HALF BLADE

BLADE - scraper bearing stand

1шт.

14

T54786

BOLT

U BOLT, scraper bars- main gang

12шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars - main gang 1/2"

24шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars - main gang 1/2"-13, G5

24шт.

17

T54898

BAR - scraper 70", scraper bars - main gang

4шт.
