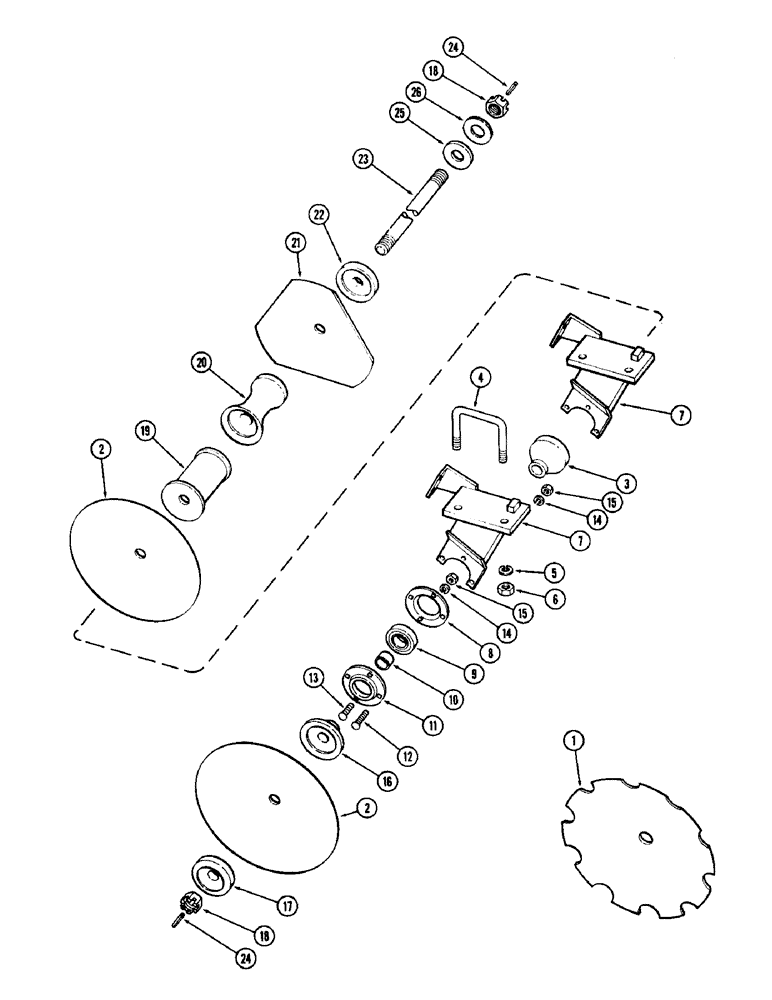

Запчасти Case IH DOT 31 (58) - REAR LEFT WING GANG, 31 FOOT

1

T55432

BLADE

- disk 22" x 7 gauge notched

11шт.

1

T55433

BLADE - disk 24" x 6 gauge notched

11шт.

1

T55435

BLADE - disk 20 x .148" notched

1шт.

1

T55432

BLADE

- disk 22" x 7 gauge notched

1шт.

2

T54957

BLADE - disk 22" x 7 gauge solid

11шт.

2

T55434

BLADE - disk 24" x 6 gauge solid

11шт.

2

T54956

BLADE

- disk 20 x .148" solid

1шт.

2

T54957

BLADE - disk 22" x 7 gauge solid

1шт.

3

T55807

SPOOL

- half rear bearing

3шт.

4

T54958

BOLT

U BOLT

3шт.

5

192-29

LOCK WASHER,7/8"

7/8"

6шт.

6

129-109

NUT,7/8"-9, G5

6шт.

7

T55056

STAND - bearing

3шт.

8

T55725

FLANGE

3шт.

9

T54897

FLANGED BEARING,45.09mm ID x 90mm OD x 30.16mm W

BEARING

3шт.

10

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing

3шт.

11

T55726

FLANGE

- with fitting

3шт.

12

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

9шт.

13

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

BOLT - 1/2 x 1" NC carriage (Grade 5)

3шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

16

T55806

SPOOL

- half front bearing

3шт.

17

T55774

CAP

END CAP

1шт.

18

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

2шт.

19

T54890

SPOOL

- steel

9шт.

20

T56068

SPOOL

- cast

9шт.

21

T54955

BLADE - disk 18 x .148"

1шт.

21

T55431

BLADE

- disk 20 x .148"

1шт.

22

T55773

CAP

END CAP

1шт.

23

T55480

SHAFT

- gang 116-1/2"

1шт.

24

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

25

T54884

WASHER

- 4 x 1-9/16 x 3/8"

1шт.

26

195-117

WASHER - 4 x 1-7/8" x 7 gauge

1шт.
