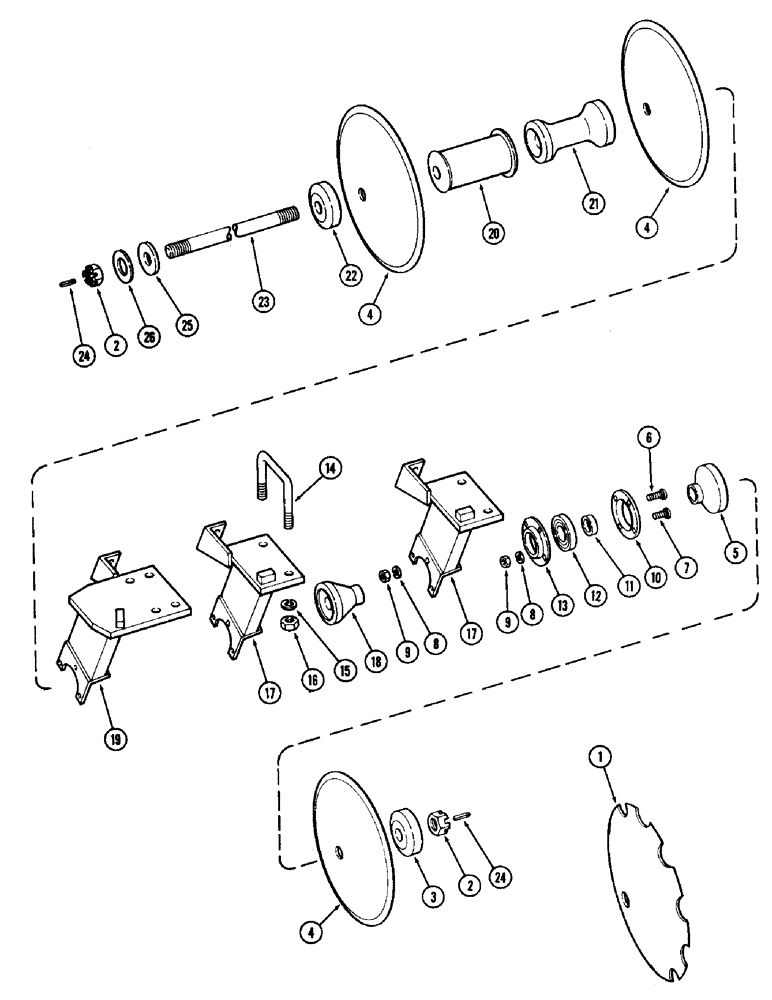

Запчасти Case IH DOT 31 (46) - FRONT LEFT WING GANG, 31 FOOT

1

T55432

BLADE

- disk 22" x 7 gauge notched

11шт.

1

T55433

BLADE - disk 24" x 6 gauge notched

11шт.

1

T55435

BLADE - disk 20 x .148" notched

1шт.

1

T55432

BLADE

- disk 22" x 7 gauge notched

1шт.

2

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

2шт.

3

T55774

CAP

END CAP

1шт.

4

T54957

BLADE - disk 22" x 7 gauge solid

11шт.

4

T55434

BLADE - disk 24" x 6 gauge solid

11шт.

4

T54956

BLADE

- disk 20 x .148" solid

1шт.

4

T54957

BLADE - disk 22" x 7 gauge solid

1шт.

5

T55806

SPOOL

- half front bearing

4шт.

6

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

12шт.

7

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

BOLT - 1/2 x 1" NC carriage (Grade 5)

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

10

T55726

FLANGE

- with fitting

4шт.

11

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing

4шт.

12

T54897

FLANGED BEARING,45.09mm ID x 90mm OD x 30.16mm W

BEARING

4шт.

13

T55725

FLANGE

4шт.

14

T54958

BOLT

U BOLT

5шт.

15

192-29

LOCK WASHER,7/8"

7/8"

10шт.

16

129-109

NUT,7/8"-9, G5

10шт.

17

T55058

STAND - bearing

3шт.

18

T55807

SPOOL

- half rear bearing

4шт.

19

T55730

STAND - bearing

1шт.

20

T54890

SPOOL

- steel

7шт.

21

T56068

SPOOL

- cast

7шт.

22

T55773

CAP

END CAP

1шт.

23

T55479

SHAFT

- gang 107"

1шт.

24

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

25

T54884

WASHER

- 4 x 1-9/16 x 3/8"

1шт.

26

195-117

WASHER - 4 x 1-7/8" x 7 gauge

1шт.
