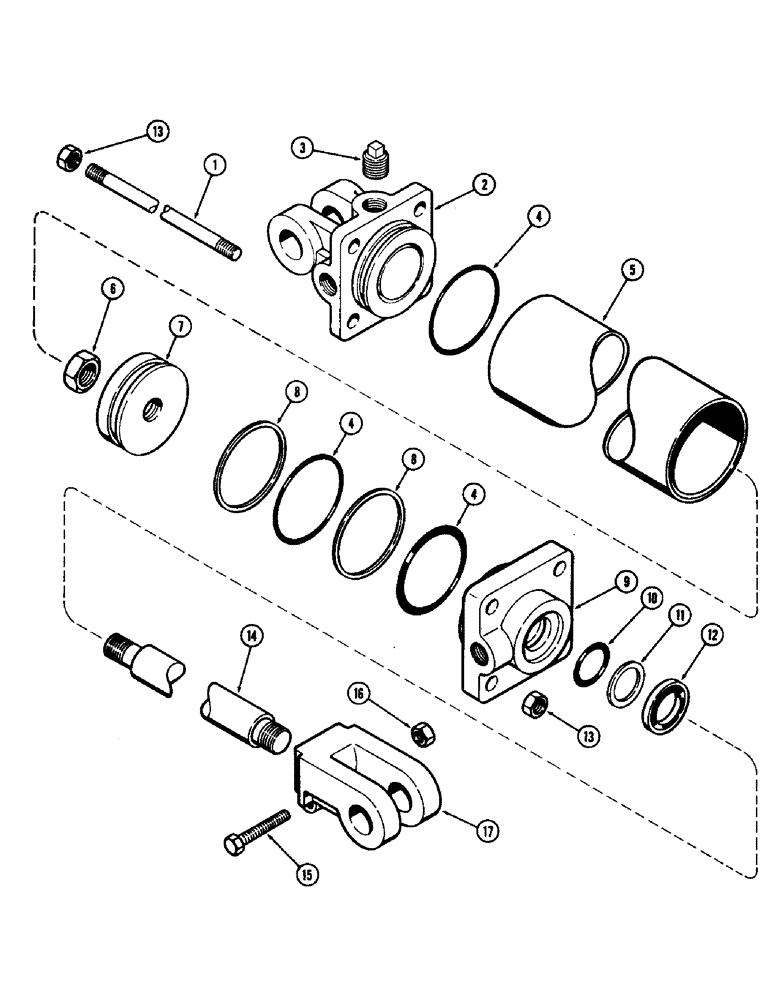

Запчасти Case IH DOT 31 (24) - T54911 CYLINDER, 3-1/2 X 16 INCH

T54911

CYLINDER - complete

2шт.

1

T56233

TIE-ROD

ROD - tie

4шт.

2

T55037

BASE

- cylinder

1шт.

3

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2"

1шт.

4

T55155

O-RING

3шт.

Part of seal kit P/N T63225

1шт.

5

T55031

TUBE - cylinder 3.5" ID x 3.88" OD x 18.5" L

1шт.

6

B17305

NUT

- piston rod

1шт.

7

B17275

PISTON

1шт.

8

B17191

SEAL - backup

2шт.

Part of seal kit P/N T63225

1шт.

9

T55035

END

HEAD - cylinder

1шт.

10

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

1шт.

Part of seal kit P/N T63225

1шт.

11

B17236

SEAL - backup

1шт.

Part of seal kit P/N T63225

1шт.

12

A41785

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit P/N T63225

1шт.

13

25-110

POSTER

NUT - tie rod

8шт.

14

T55032

ROD

- piston

1шт.

15

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC socket head

1шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

17

T56084

FORK

CLEVIS - rod

1шт.

T63225

SEAL

KIT - Includes: Ref. 4, 8, 10, 11 and 12

1шт.
