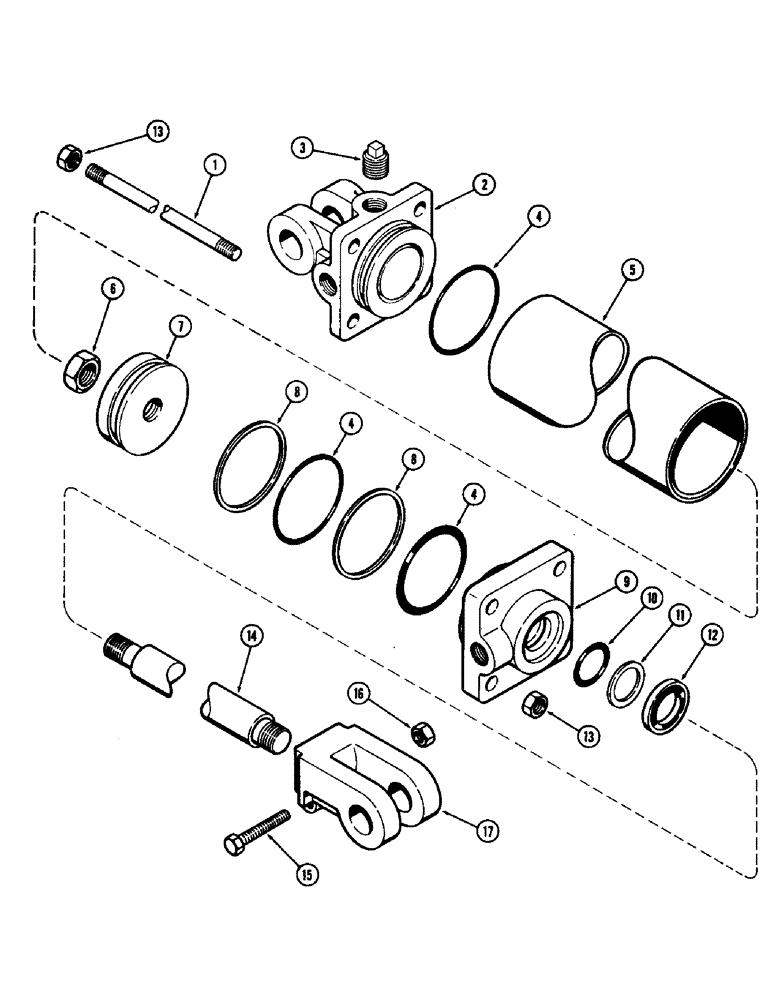

Запчасти Case IH DOT 31 (24[1]) - T54912 CYLINDER, 4 X 16 INCH

T54912

CYLINDER - complete

2шт.

1

B17264

TIE-ROD

ROD - tie

4шт.

2

B17283

BASE

- cylinder

1шт.

3

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2"

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

3шт.

Part of seal kit P/N B17234

1шт.

5

B17240

TUBE

- cylinder

1шт.

6

131-914

NUT,1"-14

NUT - piston rod

1шт.

7

B17276

PISTON

1шт.

8

B17285

SEAL - backup

2шт.

Part of seal kit P/N B17234

1шт.

9

B17271

HEAD

- cylinder

1шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

1шт.

Part of seal kit P/N B17234

1шт.

11

B17299

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit P/N B17234

1шт.

12

B17292

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit P/N B17234

1шт.

13

25-1110

NUT,5/8"-18, G5

- tie rod

8шт.

14

T55025

ROD

- piston

1шт.

15

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC socket head

1шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

17

T56084

FORK

CLEVIS - rod

1шт.

B17234

SEAL

KIT - Includes: Ref. 4, 8, 10, 11 and 12

1шт.
