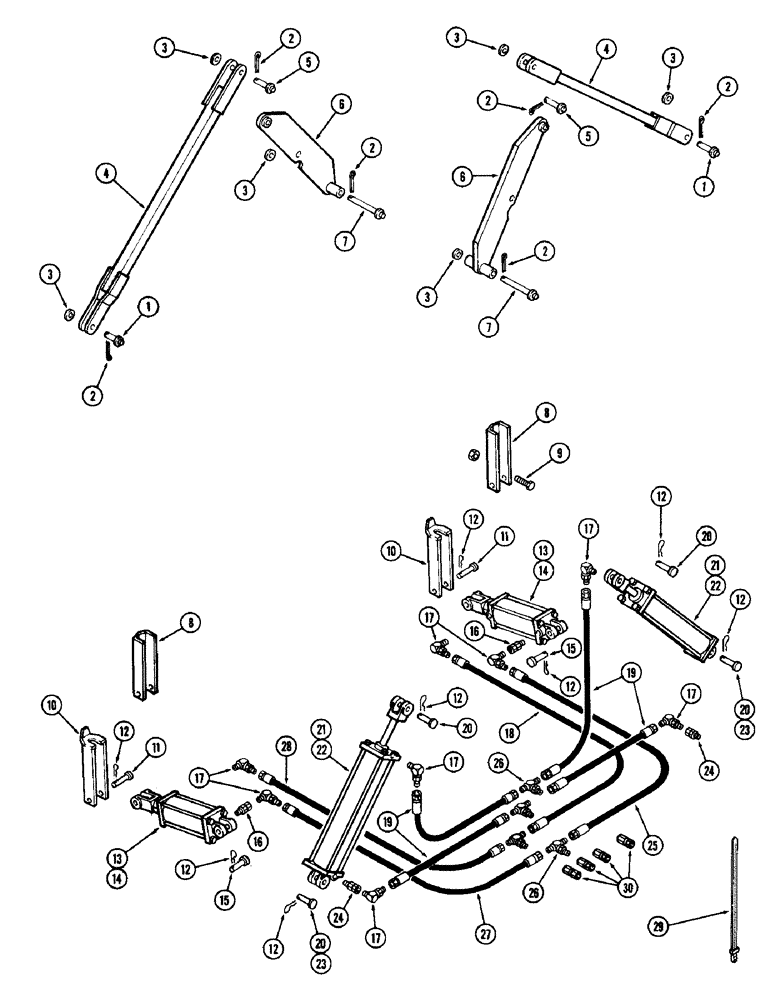

Запчасти Case IH DOT 28 (22) - LIFT ASSEMBLY

1

T54735

PIN

- 1 x 3-1/2"

2шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

6шт.

3

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

6шт.

4

T54886

TUBE - linkage 2" OD x 63.312" L

2шт.

5

T54750

PIN

- 1 x 4-3/8"

2шт.

6

T54885

PLATE - linkage

2шт.

7

T54868

PIN - 1 x 8-3/4"

2шт.

8

T54942

LOCKING DEVICE

LOCKOUT - cylinder

2шт.

9

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

10

T55390

LOCKING DEVICE

LOCKOUT - cylinder (T54942 can also be used)

2шт.

11

T54953

PIN

- 1 x 4-3/4"

2шт.

12

B17308

CLIP

COTTER

8шт.

13

T54910

CYLINDER

- depth control 4 x 8" (See page 26)

2шт.

14

T55391

CYLINDER ASSY.

CYLINDER - depth control 4 x 8" (T54910 can also be used) (See page 26)

2шт.

15

B17284

CLEVIS PIN

PIN - cylinder

2шт.

16

T55393

RESTRICTOR

SWIVEL - pipe with 5/64" restrictor

2шт.

17

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 90 degrees

8шт.

18

T54902

HOSE - 3/8" x 5'6"

1шт.

19

T54900

HOSE - 3/8" x 4'

4шт.

20

T55040

PIN

- cylinder (T54912)

2шт.

20

T55040

PIN

- cylinder (T54911)

4шт.

21

T54911

CYLINDER - wing lift 3-1/2 x 16" (25' and 28') (See page 24)

2шт.

22

T54912

CYLINDER - wing lift 4 x 16" (31') (See page 24)

2шт.

23

T55039

PIN - cylinder (T54912)

2шт.

24

T55392

RESTRICTOR

SWIVEL - pipe with 1/16" restrictor

2шт.

25

T54901

HOSE - 3/8" x 4'6"

1шт.

26

218-1575

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

FITTING - 1/2 x 3/8"

4шт.

27

T54903

HOSE - 3/8" x 6'

1шт.

28

T54904

HOSE - 3/8" x 7'

1шт.

29

T54909

STRAP - nylon 1" x 3'

2шт.

30

T55522

ADAPTER - 1/2 x 1/2"

4шт.
