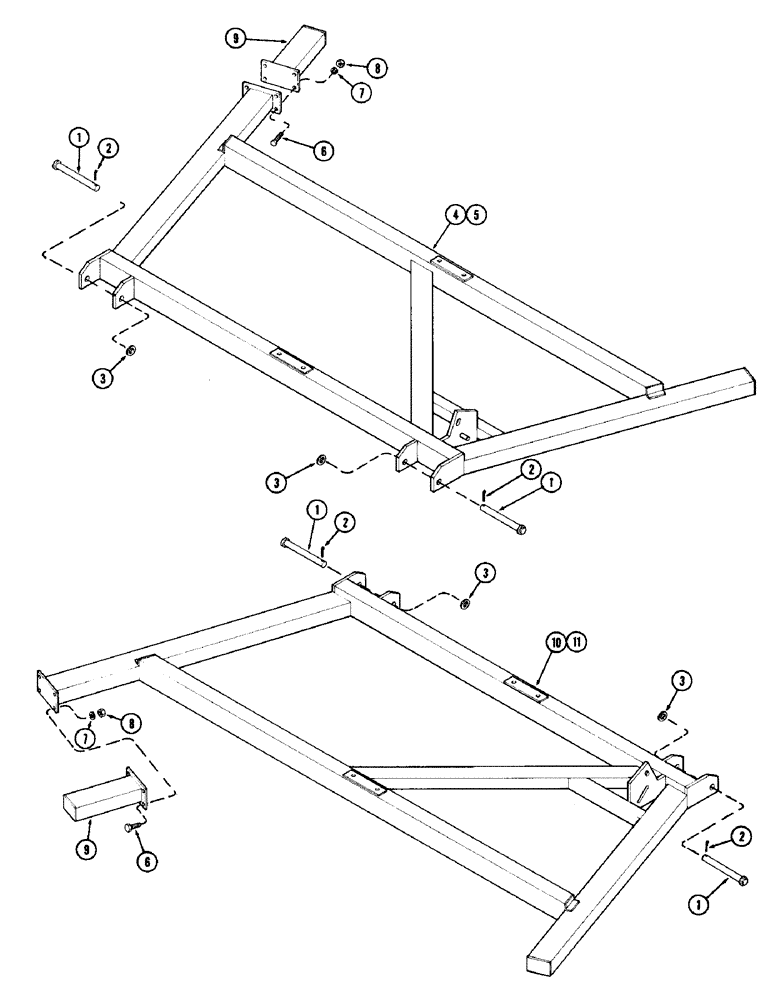

Запчасти Case IH DOT 28 (10) - WING FRAMES AND EXTENSIONS, 28 FOOT

1

T54914

PIN - 1-1/2 x 14-3/8"

4шт.

2

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

4шт.

3

195-115

WASHER,1 1/2"

- 3-1/2 x 1-5/8" x 7 gauge

4шт.

4

T54922

FRAME

- left wing

1шт.

5

T55429

FRAME

- left wing (T54922 can also be used)

1шт.

6

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

8

129-108

NUT,3/4"-10, G5

8шт.

9

T54959

EXTENSION - front

2шт.

10

T54923

FRAME

- right wing

1шт.

11

T55428

FRAME

- right wing (T54923 can also be used)

1шт.
