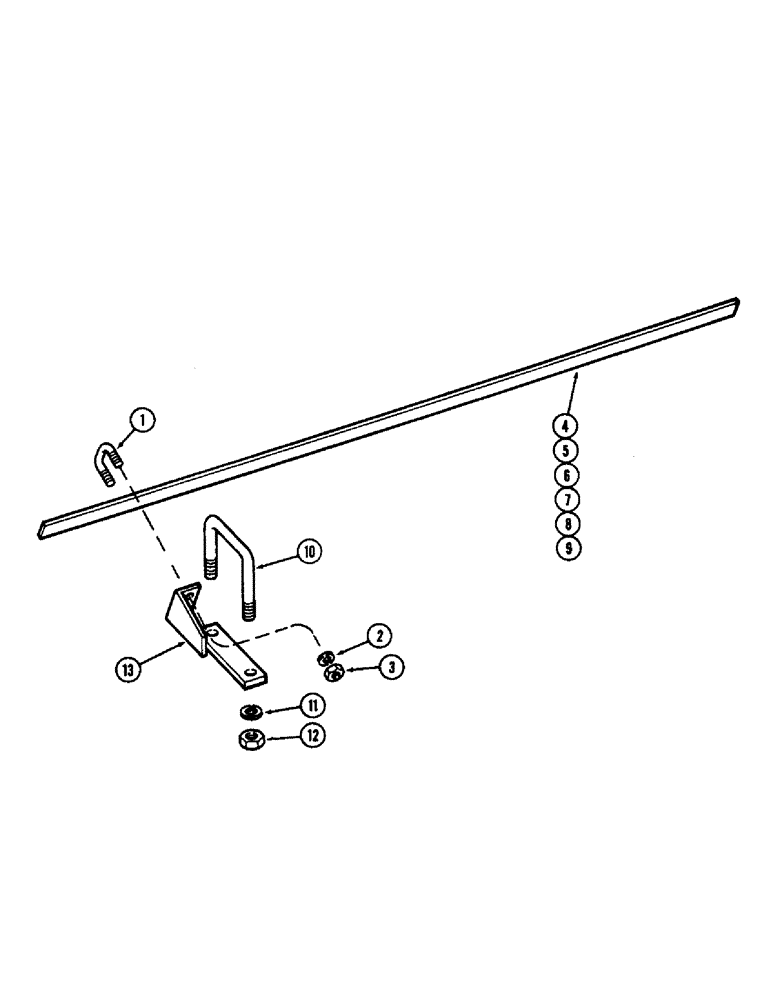

Запчасти Case IH DOT 28 (62[1]) - SCRAPER BARS, WING GANG, 28 FOOT

1

T54786

BOLT

U BOLT,28 foot

12шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 28 foot 1/2"

24шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

28 foot 1/2"-13, G5

24шт.

6

T54929

BAR - scraper 87-1/2" (Front RH and front LH), 28 foot

2шт.

7

T54927

BAR - scraper 96" (Rear RH and rear LH), 28 foot

2шт.

10

T54958

BOLT

U BOLT, 28 foot

2шт.

11

192-29

LOCK WASHER,7/8"

28 foot 7/8"

4шт.

12

129-109

NUT,7/8"-9, G5

28 foot 7/8"-9, G5

4шт.

13

T54943

SUPPORT - scraper arm, 28 foot

2шт.
