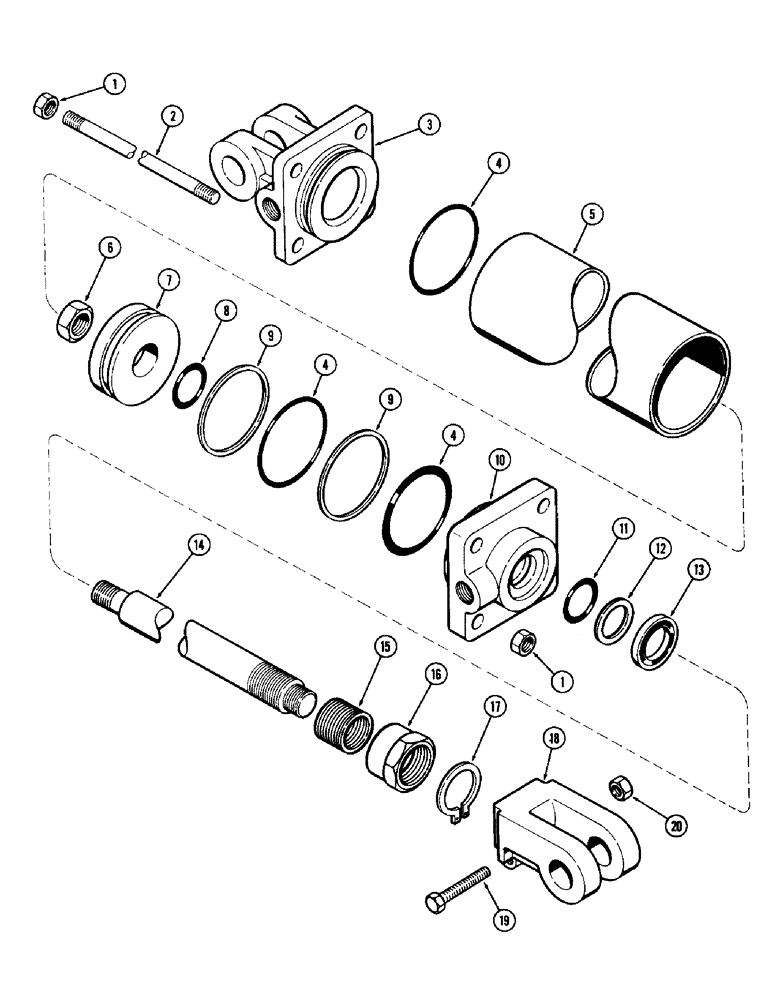

Запчасти Case IH DOT 28 (26) - T54910 CYLINDER, 4 X 8 INCH

T54910

CYLINDER

- complete

2шт.

1

25-110

POSTER

NUT - tie rod

8шт.

2

B17263

ROD - tie

4шт.

3

B17282

BASE

- cylinder

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

3шт.

Part of seal kit B17233

1шт.

5

B17239

TUBE - cylinder

1шт.

6

131-914

NUT,1"-14

NUT - piston rod

1шт.

7

B17276

PISTON

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

O RING

1шт.

Part of seal kit B17233

1шт.

9

B17285

SEAL - backup

2шт.

Part of seal kit B17233

1шт.

10

B17270

HEAD

- cylinder

1шт.

11

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O RING

1шт.

Part of seal kit B17233

1шт.

12

B17298

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit B17233

1шт.

13

B17291

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit B17233

1шт.

14

B17249

ROD

- piston

1шт.

15

B17257

STOP

COLLAR - inner

1шт.

16

B17259

STOP

COLLAR - outer

1шт.

17

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

18

T55022

CLEVIS

- rod

1шт.

19

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC socket head

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

B17233

SEAL

KIT - Includes: Ref. 4, 8, 9, 11, 12 and 13

1шт.
