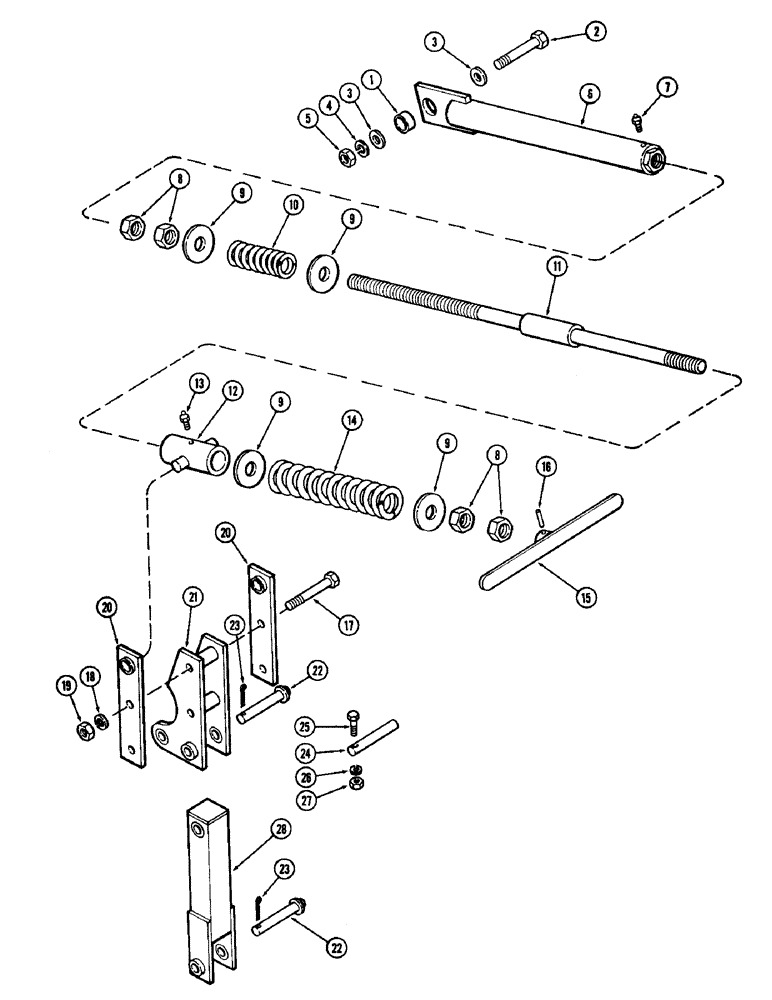

Запчасти Case IH DOT 25 (20) - LEVEL ASSEMBLY

1

T54727

BUSHING

- 1-7/8 x 7/8"

1шт.

2

113-826

BOLT,Hex, 7/8" - 9 x 6", Gr 5

- 7/8 x 6" NC hex (Grade 5)

1шт.

3

195-110

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

2шт.

4

192-29

LOCK WASHER,7/8"

7/8"

1шт.

5

129-109

NUT,7/8"-9, G5

1шт.

6

T54878

TUBE - level adjustment 29" L

1шт.

7

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

8

129-154

NUT,Jam, 1 1/2"-6, G5

- 1-1/2" NC hex

4шт.

9

T54884

WASHER

STOP - spring

4шт.

10

T54883

SPRING - level screw

1шт.

11

T54880

STOP - level screw

1шт.

12

T54881

TRUNNION

1шт.

13

219-2

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

14

T54882

SPRING - level screw

1шт.

15

T54879

HANDLE - level

1шт.

16

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

17

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

18

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

19

129-108

NUT,3/4"-10, G5

2шт.

20

T54941

STRAP - trunnion

2шт.

21

T54939

PLATE - level pivot

1шт.

22

T54952

PIN

- 1 x 6-3/8"

2шт.

23

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

24

T55157

PIN

- 1 x 6-5/8" (For crossmember with bushing)

1шт.

25

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

T54940

CONNECTOR - level

1шт.
