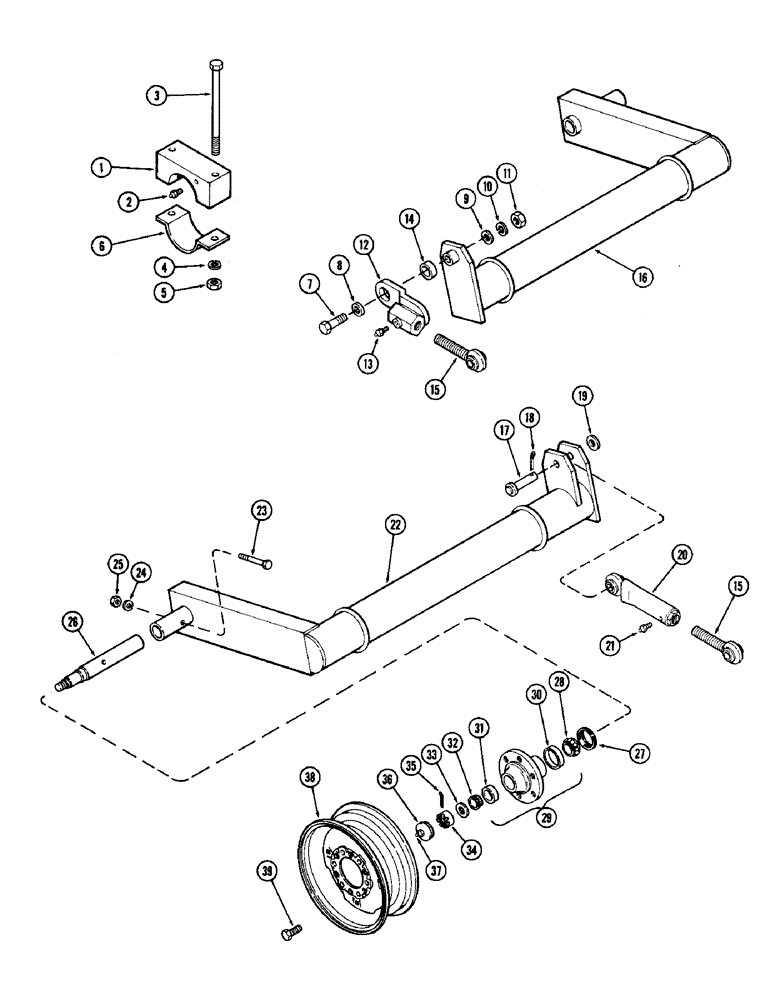

Запчасти Case IH DOT 25 (14) - WING AXLES AND WHEELS, 25 FOOT

1

T54948

BEARING

- axle 4-1/2" diameter

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

3

13-12176

BOLT,Hex, 3/4" - 10 x 11", Gr 5

- 3/4 x 11" NC hex (Grade 5)

8шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

129-108

NUT,3/4"-10, G5

8шт.

6

T54949

CLAMP - axle bearing 4-1/2" diameter

4шт.

7

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- 7/8 x 3" NC hex (Grade 5)

1шт.

8

195-110

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

1шт.

9

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

1шт.

10

192-29

LOCK WASHER,7/8"

7/8"

1шт.

11

129-109

NUT,7/8"-9, G5

1шт.

12

T54946

CONNECTOR, ELEC

CONNECTOR - swivel lift wing

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

14

T54727

BUSHING

- 1-7/8 x 7/8"

1шт.

15

T54944

ROD

- swivel connector

2шт.

16

T54917

AXLE - left wing

1шт.

17

T54750

PIN

- 1 x 4-3/8"

1шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

19

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 9 gauge

1шт.

20

T54945

CONNECTOR, ELEC

CONNECTOR - swivel right wing

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

22

T54916

AXLE - right wing

1шт.

23

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

T56597

SPINDLE

2шт.

27

T23709

SEAL

- grease

2шт.

28

G57452

ROLLER BEARING

CONE - bearing inner

2шт.

29

T27113

HUB

ASSEMBLY - with cups

2шт.

30

G57451

BEARING, CUP

CUP - bearing inner

1шт.

31

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

1шт.

32

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

2шт.

33

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

2шт.

34

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

35

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

36

T54729

DUST CAP

CAP ASSEMBLY - dust with fitting

2шт.

37

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

38

A27879

TUBE

WHEEL - 15 x 8"

2шт.

39

A29912

BOLT

BOLT - wheel

12шт.
