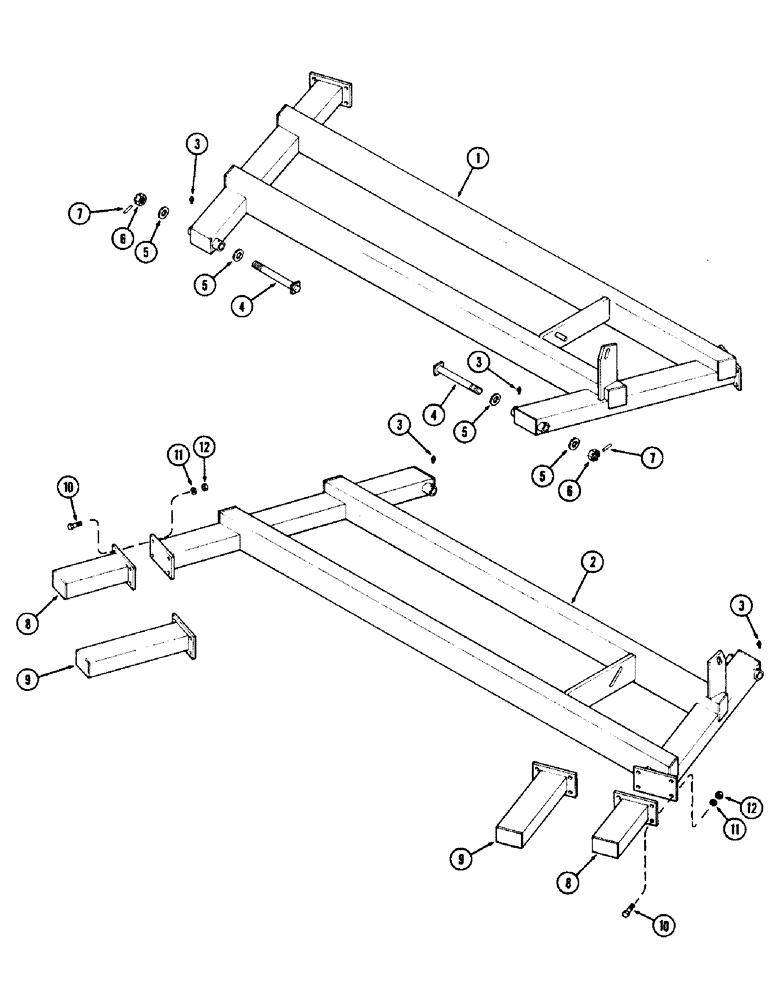

Запчасти Case IH DOT 23 (08) - WING FRAMES AND EXTENSIONS

1

T56456

FRAME - left wing

1шт.

2

T56455

FRAME - right wing

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

8шт.

4

T55765

PIN - wing hinge

4шт.

5

195-115

WASHER,1 1/2"

- 3-1/2 x 1-5/8" x 7 gauge

8шт.

6

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC slotted

4шт.

7

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

4шт.

8

T56441

EXTENSION - wing 15" (381.0 MM) Model 23-21 only

4шт.

9

T56450

EXTENSION - wing 24" (609.6 MM) Model 23-23 only

4шт.

10

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

16шт.

11

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

12

129-108

NUT,3/4"-10, G5

16шт.
