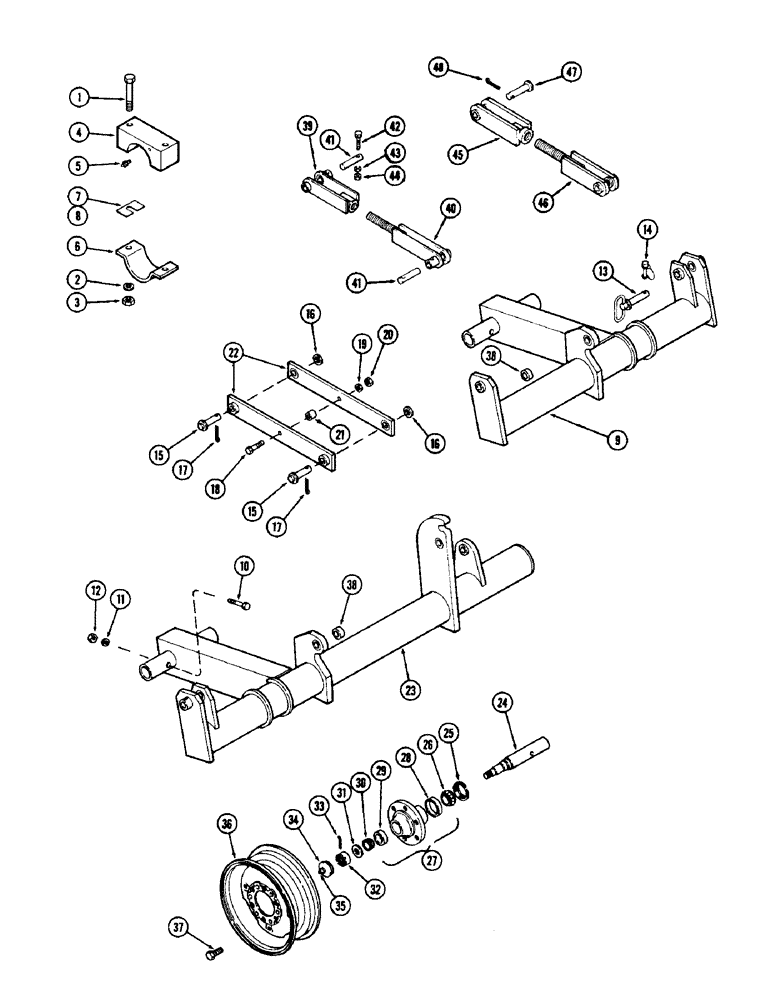

Запчасти Case IH DOT 23 (06) - CENTER AXLES AND WHEELS

1

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

3

129-108

NUT,3/4"-10, G5

8шт.

4

T54947

BEARING

- axle 5-1/2" (139.7 MM) diameter

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

6

T54775

SHAFT

CLAMP - axle bearing 5-1/2" (139.7 MM) diameter

4шт.

7

T56224

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 12 gauge

1шт.

8

T56225

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 16 gauge

1шт.

9

T57403

AXLE - left center

1шт.

10

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

T55798

PIN - 1 x 6-1/8" (25.4 x 155.6 MM)

2шт.

14

T55843

PIN - snapper

2шт.

15

T55755

PIN - 1 x 4" (25.4 x 101.6 MM)

2шт.

16

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

2шт.

17

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

18

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

T55838

SPACER - axle straps

1шт.

22

T56440

STRAP - axle

2шт.

23

T57402

AXLE - right center

1шт.

24

T55744

SPINDLE

4шт.

25

T54255

OIL SEAL

SEAL - grease

4шт.

26

G15219

ROLLER BEARING

CONE - bearing inner 1-5/8" ID (41.3 MM)

4шт.

27

T54253

HUB

ASSEMBLY - with cups

4шт.

28

G15218

BEARING, CUP

CUP - bearing inner 2-7/8" OD (73.0 MM)

1шт.

29

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

30

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

4шт.

31

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

4шт.

32

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

33

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32 x 1-1/4"

4шт.

34

T54729

DUST CAP

CAP ASSEMBLY - dust

4шт.

35

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

36

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.

37

A29912

BOLT

BOLT - wheel

24шт.

38

T55853

BUSHING

2шт.

39

T56536

CONNECTOR, ELEC

CONNECTOR - swivel

1шт.

40

T56537

ROD

- swivel connector

1шт.

41

T56626

PIN - 1 x 4" (25.4 x 101.6 MM) Used with T56536 and T56537

2шт.

42

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

45

T57398

CONNECTOR, ELEC

CONNECTOR - swivel

1шт.

46

T57399

ROD

- swivel connector

1шт.

47

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM) Use with T57398 and T57299

2шт.

48

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.
