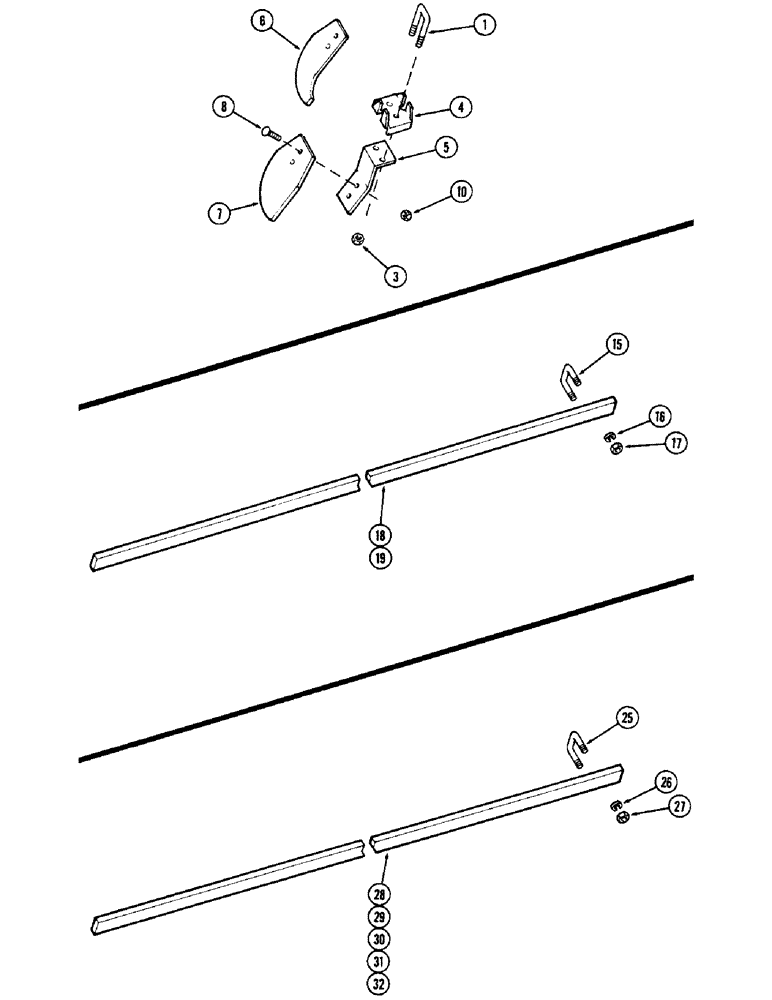

Запчасти Case IH DOT 23 (62[2]) - REAR CENTER RIGHT & LEFT

1

T54785

BOLT

U-BOLT

1шт.

3

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

4

T55808

CLIP

- scraper arm

1шт.

5

T54789

ARM

- scraper

1шт.

6

T54790

HALF BLADE

BLADE - scraper bearing stand

1шт.

7

T54788

HALF BLADE

BLADE - scraper

1шт.

8

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

2шт.

10

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

15

T54786

BOLT

U-BOLT

6шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

18

T56463

BAR - scraper 62-1/2" (1587.5 MM)

2шт.

15

T54786

BOLT

U-BOLT

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

19

T56464

BAR - scraper 45" (1143.0 MM)

2шт.

25

T54786

BOLT

U-BOLT - (Models 23-18 and 23-21)

2шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

T54786

BOLT

U-BOLT - (Models 23-21 and 23-23)

3шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

28

T56464

BAR - scraper 45" (1143.0 MM) Front RH and LH (Model 23-18)

2шт.

29

T54898

BAR - scraper 70" (1778.0 MM) Rear RH and LH (Model 23-18)

2шт.

29

T54898

BAR - scraper 70" (1778.0 MM) Front RH and LH (Model 23-23)

2шт.

30

T56463

BAR - scraper 62-1/2" (1587.5 MM) Front RH and LH (Model 23-21)

2шт.

31

T55821

BAR - scraper 89" (2260.6 MM) Rear RH and LH (Model 23-21)

2шт.

32

T55822

BAR - scraper 97" (2463.8 MM) Rear RH and LH (Model 23-23)

2шт.
