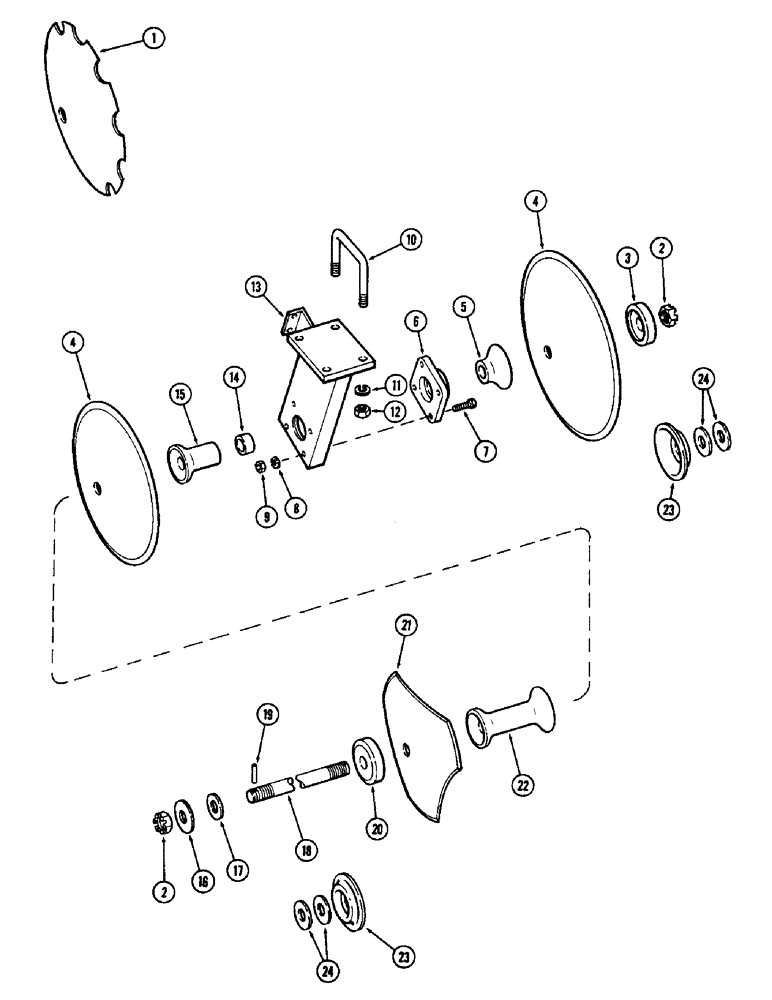

Запчасти Case IH DOT 23 (50) - REAR RIGHT WING GANG, MODEL 23-18

1

T55432

BLADE

- disk 22" (558.8 MM) x 7 gauge notch

6шт.

1

T55815

ATTACHMENT

BLADE - disk 22 x 1/4" (558.8 x 6.4 MM) notch

6шт.

1

T55433

BLADE - disk 24" (609.6 MM) x 6 gauge notch

6шт.

1

T55817

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) notch

6шт.

1

T57316

BLADE

- disk 18" (457.2 MM) x 6 gauge notch

1шт.

1

T55819

BLADE

- disk 20 x 1/4" (508.0 x 6.4 MM) notch

1шт.

1

T55815

ATTACHMENT

BLADE - disk 22 x 1/4" (558.8 x 6.4 MM) notch

1шт.

2

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC slotted

2шт.

3

T55774

CAP

END CAP (Ordered T56698 and two 95-24)

1шт.

4

T54957

BLADE - disk 22" (558.8 MM) x 7 gauge solid

6шт.

4

T55813

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid

6шт.

4

T55434

BLADE - disk 24" (609.6 MM) x 6 gauge solid

6шт.

4

T55816

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) solid

6шт.

4

T57315

BLADE

- disk 18" (457.2 MM) x 6 gauge solid

1шт.

4

T55814

BLADE

- disk 20 x 1/4" (508.0 x 6.4 MM) solid

1шт.

4

T55813

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid

1шт.

5

T55806

SPOOL

- half front bearing

2шт.

6

T55805

BEARING ASSY

BEARING - gang

2шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

T54958

BOLT

U-BOLT

4шт.

11

192-29

LOCK WASHER,7/8"

7/8"

8шт.

12

129-109

NUT,7/8"-9, G5

8шт.

13

T55771

STAND - bearing

2шт.

14

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing

2шт.

15

T55807

SPOOL

- half rear bearing

2шт.

16

195-115

WASHER,1 1/2"

- 3-1/2 x 1-5/8" x 7 gauge

1шт.

17

T54884

WASHER

- 4 x 1-9/16 x 3/8"

1шт.

18

T55475

SHAFT

BOLT - gang 70-1/4" (1784.4 MM)

1шт.

19

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

20

T55773

CAP

END CAP (Order T56698 and two 95-24)

1шт.

21

T57311

BLADE

- disk 16" (406.4 MM) x .180"

1шт.

21

T57304

BLADE

- disk 20 x 1/4" (508.0 x 6.4 MM)

1шт.

22

T56068

SPOOL

5шт.

23

T56698

WASHER

- spring (Used serial number 1620450 and up)

2шт.

24

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

4шт.
