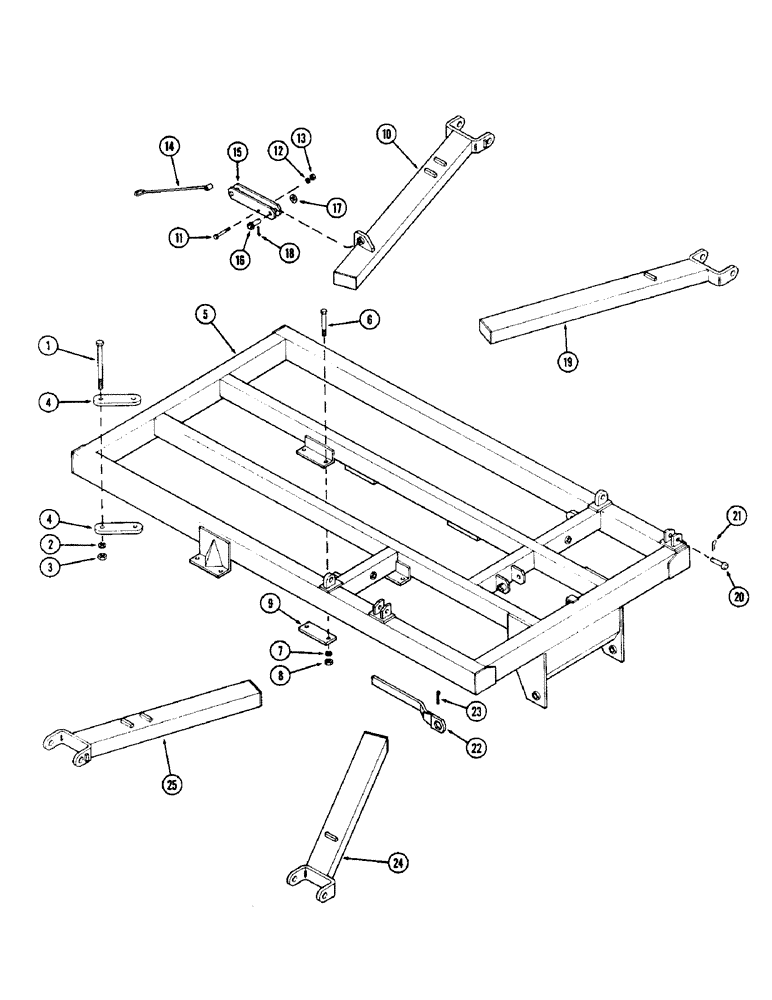

Запчасти Case IH DOT 23 (04) - MAIN FRAME AND GANG BEAMS

1

113-905

BOLT - 1 x 13" NC hex (Grade 8)

8шт.

2

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

3

129-110

NUT,1"-8, G5

8шт.

4

T56449

PLATE - clamp

8шт.

5

T56452

FRAME - main

1шт.

6

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

10шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

8

129-108

NUT,3/4"-10, G5

10шт.

9

T55767

PLATE - clamp

5шт.

10

T56459

GANG - left rear center

1шт.

11

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

T56226

HANDLE - axle lockout

1шт.

15

T55762

LOCKOUT - axle

1шт.

16

T54735

PIN

- 1 x 3-1/2" (25.4 x 88.9 MM)

1шт.

17

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

19

T56457

GANG - left front center

1шт.

20

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

2шт.

21

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

2шт.

22

T55436

WRENCH

1шт.

23

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

24

T56460

GANG - right front center

1шт.

25

T56458

GANG - right rear center

1шт.
