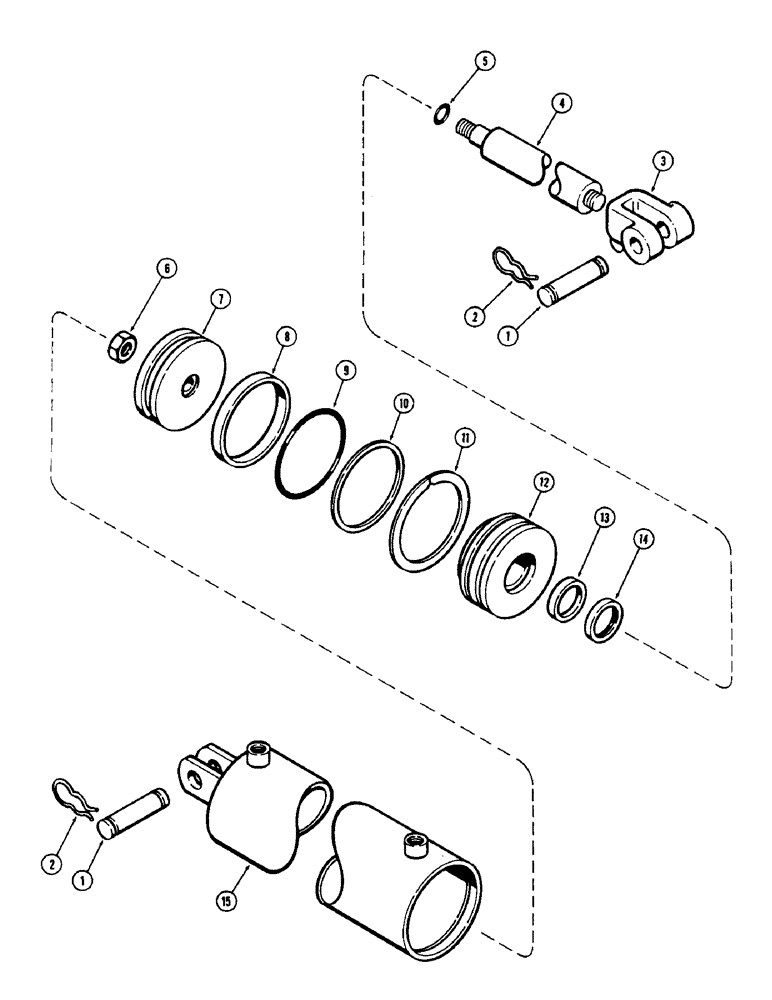

Запчасти Case IH DOT 23 (29A) - T57363 CYLINDER

T57363

CYLINDER - complete 4 x 16" (101.6 x 406.4 MM)

2шт.

1

T52925

PIN

- clevis

2шт.

2

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

4шт.

3

T57345

CLEVIS

ASSEMBLY

1шт.

4

T57354

ROD - piston

1шт.

5

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 MM)

1шт.

Part of seal kit P/N T63333

1шт.

6

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - lock 1" - 14

1шт.

7

T57343

PISTON

1шт.

8

T56879

SEAL

1шт.

Part of seal kit P/N T63333

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T63333

1шт.

10

T56875

WASHER

- backup

1шт.

Part of seal kit P/N T63333

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of seal kit P/N T63333

1шт.

12

T57344

GLAND

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of seal kit P/N T63333

1шт.

14

T52934

WIPER SEAL

WIPER

1шт.

Part of seal kit P/N T63333

1шт.

15

T57353

BASE AND TUBE ASSEMBLY

1шт.

T63333

KIT

SEAL KIT - Includes: Ref. 5, 8 thru 11, 13 and 14

1шт.
