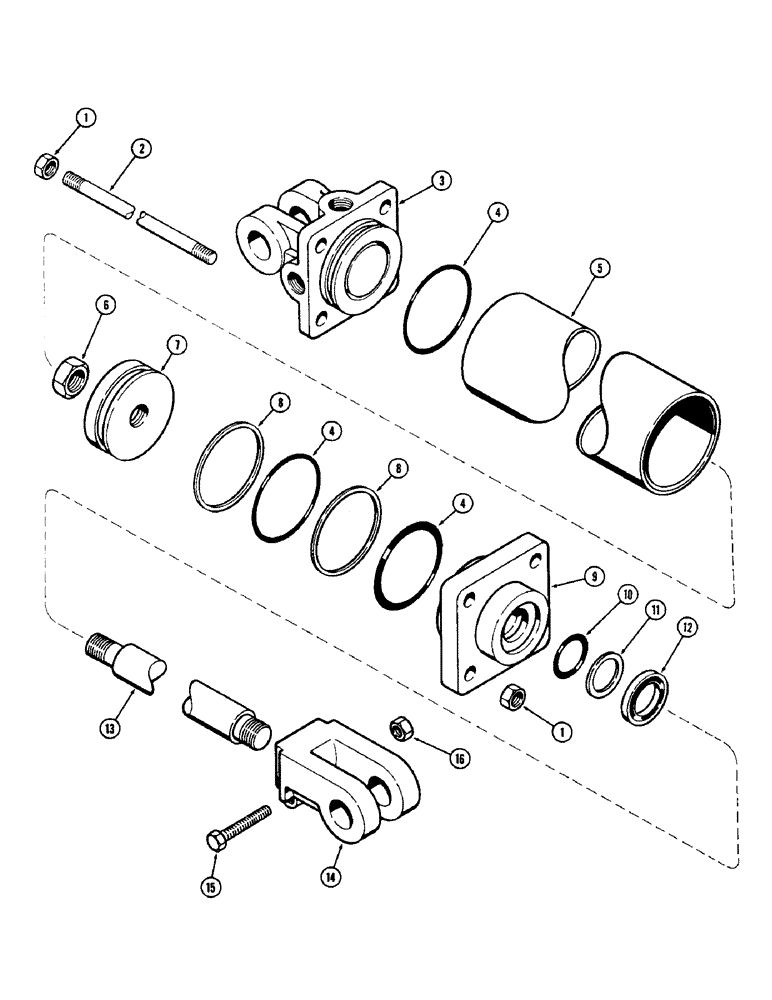

Запчасти Case IH DOT 23 (26) - T56445 CYLINDER

T56445

CYLINDER

- complete 3-1/2 x 16" (88.9 x 406.4 MM)

2шт.

1

25-109

NUT,9/16"-12, G5

- 9/16" NC hex

8шт.

2

T56233

TIE-ROD

ROD - tie

4шт.

3

T56422

BASE - cylinder

1шт.

4

T55155

O-RING

3шт.

Part of seal kit P/N T63225

1шт.

5

T55031

TUBE - cylinder 3.5" ID x 3.88" OD x 18.5" L

1шт.

6

B17305

NUT

- piston rod

1шт.

7

B17275

PISTON

1шт.

8

B17191

SEAL - backup

2шт.

Part of seal kit P/N T63225

1шт.

9

T56381

HEAD - cylinder

1шт.

10

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1/3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 MM)

1шт.

Part of seal kit P/N T63225

1шт.

11

B17326

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit P/N T63225

1шт.

12

A41785

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit P/N T63225

1шт.

13

T55032

ROD

- piston

1шт.

14

T56084

FORK

CLEVIS

1шт.

15

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC

1шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

T63225

SEAL

KIT Includes: Ref. 4, 8, 10, 11 and 12

1шт.
