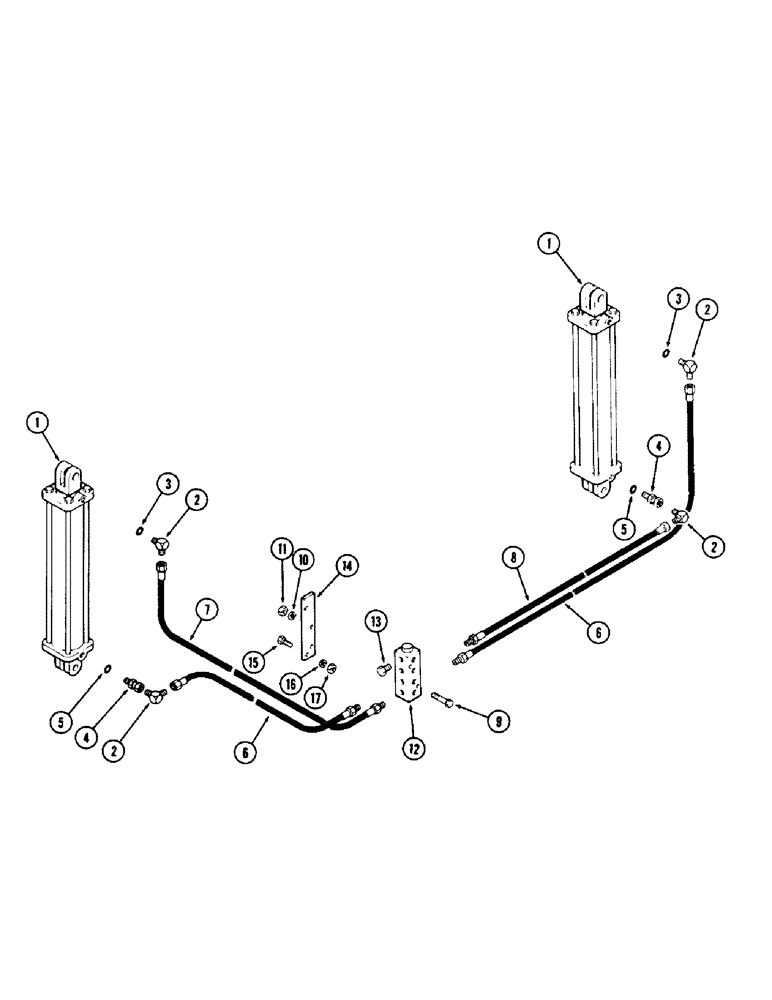

Запчасти Case IH DOT 23 (21A) - WING LIFT ASSEMBLY, WITH AUTOMATIC DEPTH CONTROL

1

T57363

CYLINDER - wing lift (See page 29A)

2шт.

2

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

ASSEMBLY - 1/2"

4шт.

4

T55392

RESTRICTOR

ASSEMBLY - 1/16" (1.6 MM)

2шт.

6

T56383

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

2шт.

7

T57420

HOSE - 3/8 x 72" (9.5 x 1828.8 MM)

1шт.

8

T56386

HOSE - 3/8 x 54" (9.5 x 1371.6 MM)

1шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

T56498

MANIFOLD

- without relief valve

1шт.

13

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

14

T55768

BRACKET - manifold mounting

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
