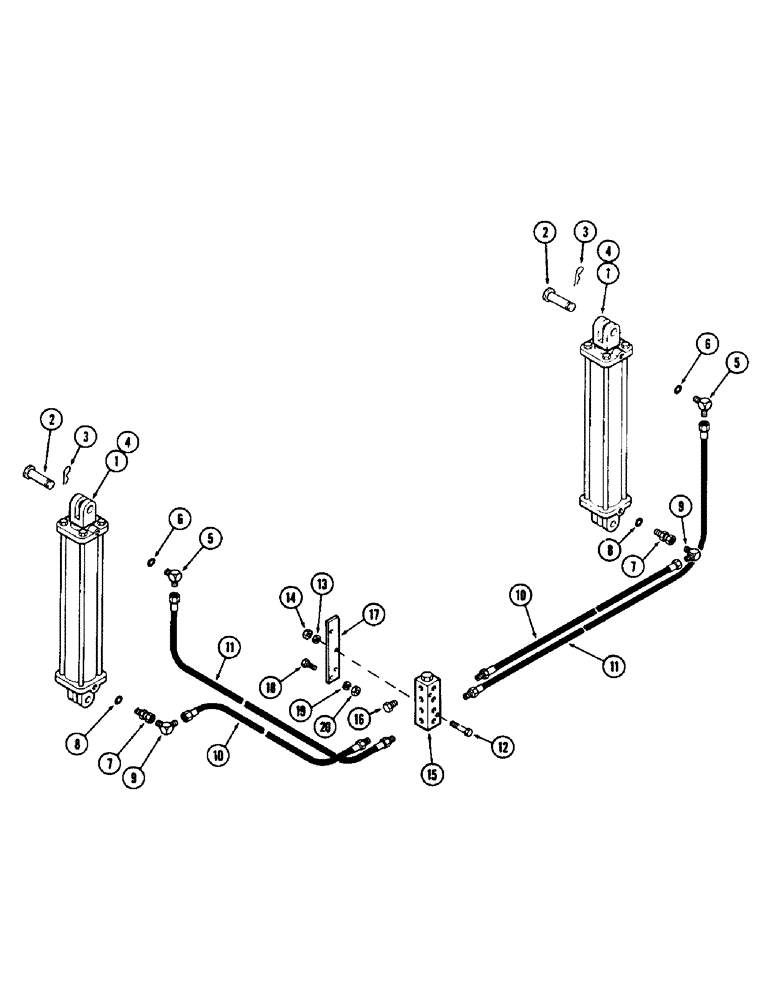

Запчасти Case IH DOT 23 (20) - WING LIFT ASSEMBLY, WITH EXTERNAL OR INTERNAL DEPTH CONTROL

1

T56445

CYLINDER

- wing lift (See page 26)

2шт.

2

T56085

PIN

- clevis (T56445)

2шт.

3

B17309

CLIP

- (T56445)

2шт.

4

T56704

CYLINDER ASSY.

CYLINDER - wing lift (See page 28)

2шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 x 3/8"

2шт.

7

T56153

RESTRICTOR ASSEMBLY - 1/16" (1.6 MM)

2шт.

9

T56378

ELBOW - 1/2 x 3/8" (12.7 x 9.5 MM)

2шт.

10

T56386

HOSE - 3/8 x 54" (9.5 x 1371.6 MM)

2шт.

11

T56383

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

2шт.

12

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

T56498

MANIFOLD

- without relief valve

1шт.

16

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

17

T55768

BRACKET - manifold mounting

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16" x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
