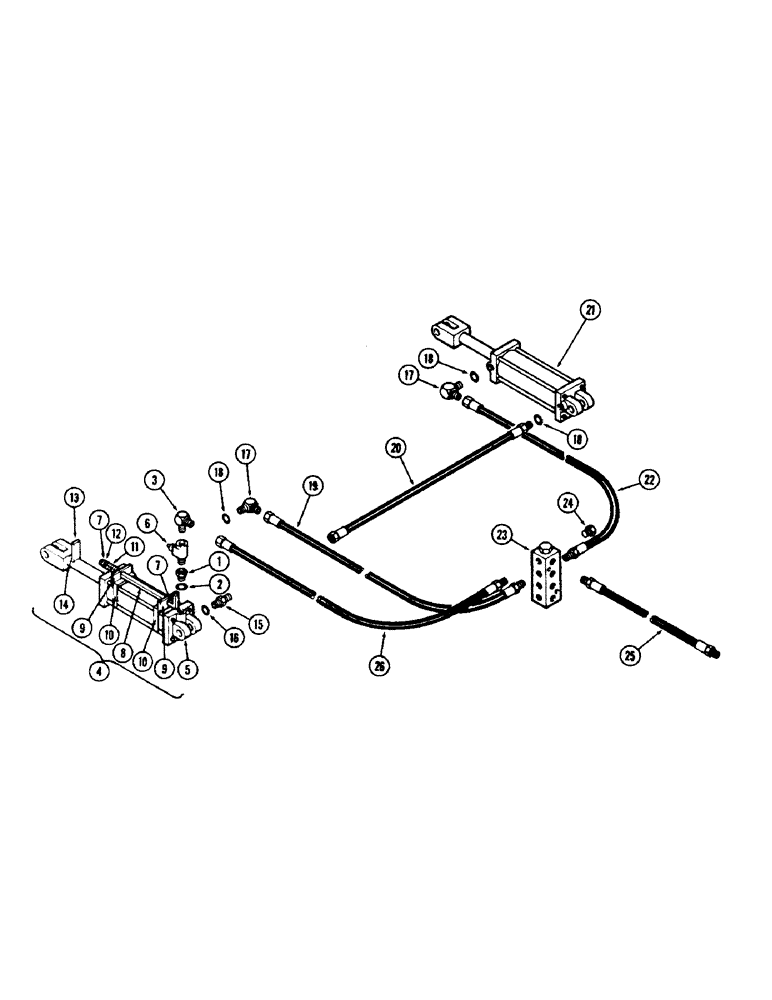

Запчасти Case IH DOT 23 (19C) - DEPTH CONTROL ASSEMBLY, AUTOMATIC SERIAL NUMBER 1639089 - 1639093, SERIAL NUMBER 1639097 -1639101

1

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

ADAPTER ASSEMBLY - 1/2 x 1/2"

1шт.

3

T57414

RESTRICTOR - 3/16" (4.8 MM)

1шт.

4

T57412

CYLINDER ASSEMBLY - depth control

1шт.

5

T56444

CYLINDER - (See page 22)

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - control

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - cotter 1/8 x 1-1/8"

2шт.

8

NSS

NOT SOLD SEPARAT

ROD - control

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - rod

2шт.

10

NSS

NOT SOLD SEPARAT

CLAMP - 6"

2шт.

11

NSS

NOT SOLD SEPARAT

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - 15/16 x 7/16" x 16 gauge

1шт.

13

NSS

NOT SOLD SEPARAT

PADDLE

1шт.

14

NSS

NOT SOLD SEPARAT

CLAMP - 2-1/4"

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER ASSEMBLY - 1/2 x 3/8"

1шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 x 3/8"

2шт.

19

T56446

HOSE - 3/8 x 78" (9.5 x 1981.2 MM)

1шт.

20

L53684

HOSE,0.38" ID x 63.00", SAE 100R1

ASSY, 0.38" ID x 63.00", SAE 100R1

1шт.

21

T56444

CYLINDER - depth control (See page 22)

1шт.

22

T56386

HOSE - 3/8 x 54" (9.5 x 1371.6 MM)

1шт.

23

T56498

MANIFOLD

- without relief valve

1шт.

24

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

25

T55837

HOSE - 1/2 x 120" (12.7 x 3048.0 MM)

4шт.

26

T56383

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
