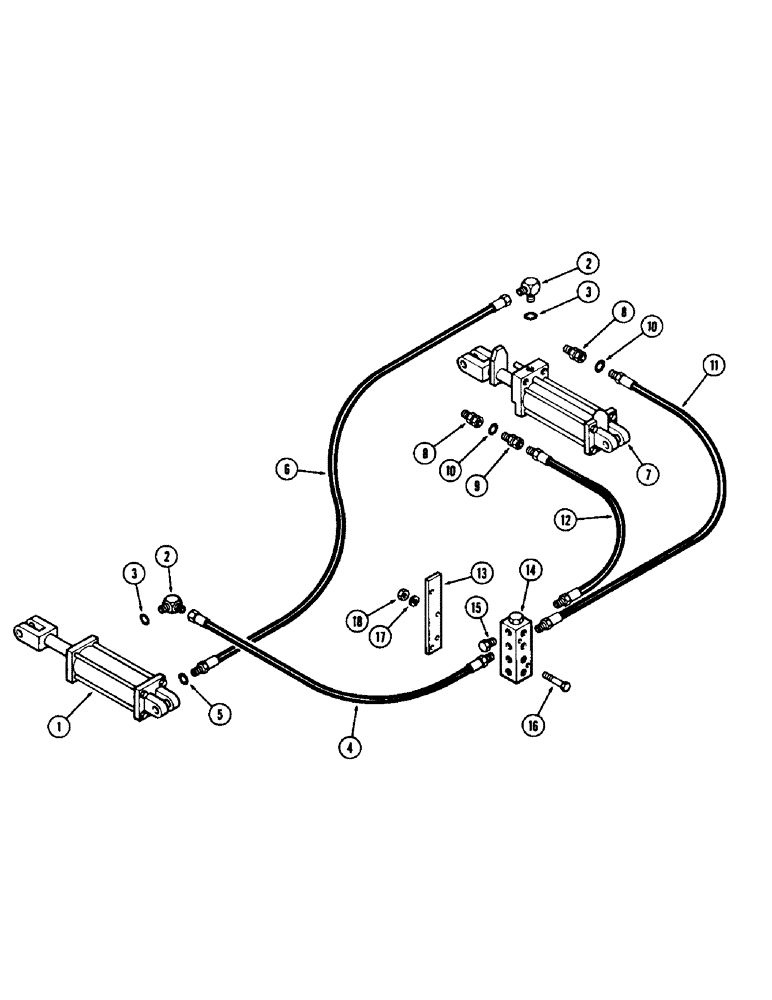

Запчасти Case IH DOT 23 (19A) - DEPTH CONTROL ASSEMBLY, INTERNAL

1

T56444

CYLINDER - depth control (See page 22)

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 x 3/8"

2шт.

4

T56446

HOSE - 3/8 x 7/8" (9.5 x 1981.2 MM)

1шт.

6

L53684

HOSE,0.38" ID x 63.00", SAE 100R1

ASSY, 0.38" ID x 63.00", SAE 100R1

1шт.

7

T57365

CYLINDER

- depth control (See page 24)

1шт.

8

T56152

ADAPTER - 1/2 x 1/2" (12.7 x 12.7 MM)

2шт.

9

T55517

RESTRICTOR ASSEMBLY - 3/16" (4.8 MM)

1шт.

11

T57289

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

12

T57288

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

13

T55768

BRACKET - manifold mounting

1шт.

14

T56498

MANIFOLD

- without relief valve

1шт.

15

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

16

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
