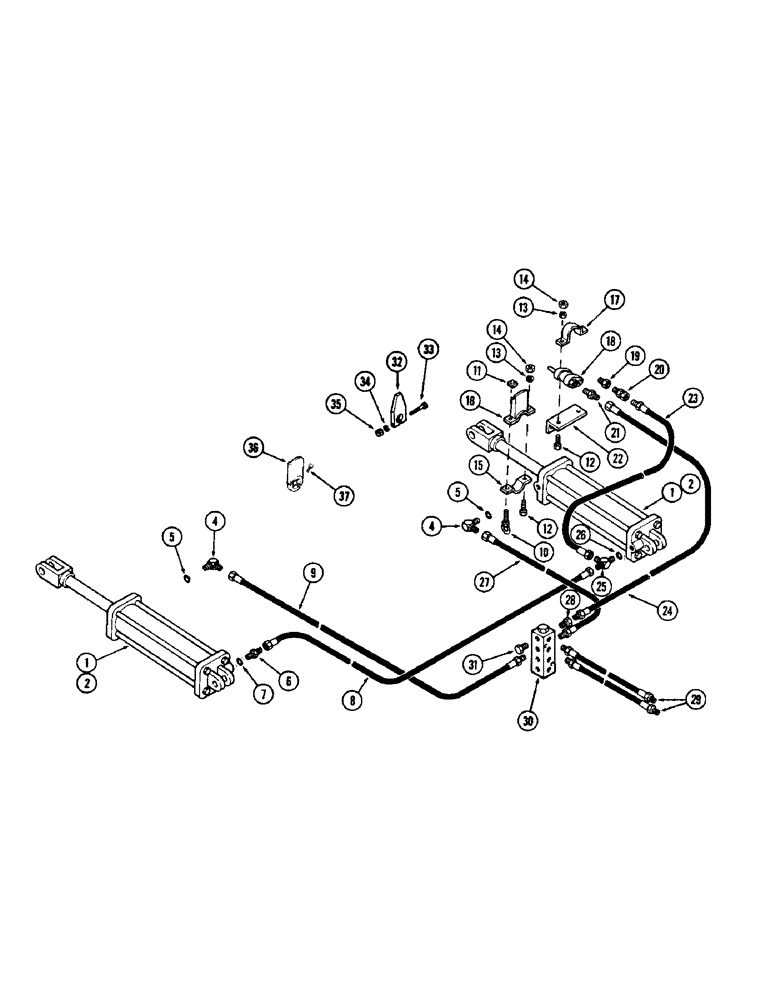

Запчасти Case IH DOT 23 (18) - DEPTH CONTROL ASSEMBLY, EXTERNAL

1

T56444

CYLINDER - depth control (See page 22)

2шт.

2

T57365

CYLINDER

- depth control (Used serial number 1638898 and up) See page 24

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2 x 3/8"

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER ASSEMBLY - 1/2 x 1/2"

1шт.

8

T56448

HOSE - 3/8 x 61" (9.5 x 1549.4 MM)

1шт.

9

T56446

HOSE - 3/8 x 78" (9.5 x 1981.2 MM)

1шт.

10

T56067

BOLT - adjustment

1шт.

11

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- 5/16" NC square

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

3шт.

15

T56443

CLAMP - actuator arm

1шт.

16

T56442

PADDLE

ARM - actuator (Order one each T56703, 113-241, 192-21 and 129-103)

1шт.

17

T56065

CLAMP - flow control valve

1шт.

18

T56063

VALVE

- flow control

1шт.

19

T56152

ADAPTER - 1/2 x 1/2" (12.7 x 12.7 MM)

1шт.

20

T55517

RESTRICTOR - 3/16" (4.8 MM)

1шт.

21

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - 1/2 x 1/2"

1шт.

22

T56066

BRACKET - valve mounting

1шт.

23

T56447

HOSE - 1/2 x 14" (12.7 x 355.6 MM)

1шт.

24

T56382

HOSE - 1/2 x 66" (12.7 x 1676.4 MM)

1шт.

25

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING ASSEMBLY - 1/2 x 1/2 x 1/2"

1шт.

27

T56383

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

28

T56380

ADAPTER - 1/2 x 3/8" (12.7 x 9.5 MM)

1шт.

29

T55837

HOSE - 1/2 x 120" (12.7 x 3048.0 MM)

4шт.

30

T56498

MANIFOLD

- without relief valve

1шт.

31

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

32

T56703

PADDLE

ARM - actuator (Order T57227)

1шт.

33

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

T57227

PADDLE

ARM - actuator

1шт.

37

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

CAPSCREW - 1/4 x 5/8" NF hex socket head

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ASSEMBLY - 3/4 x 7/8" (For cylinders with 7/8" ports only) Not illustrated

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.1 x 23.8 x 2.4 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
