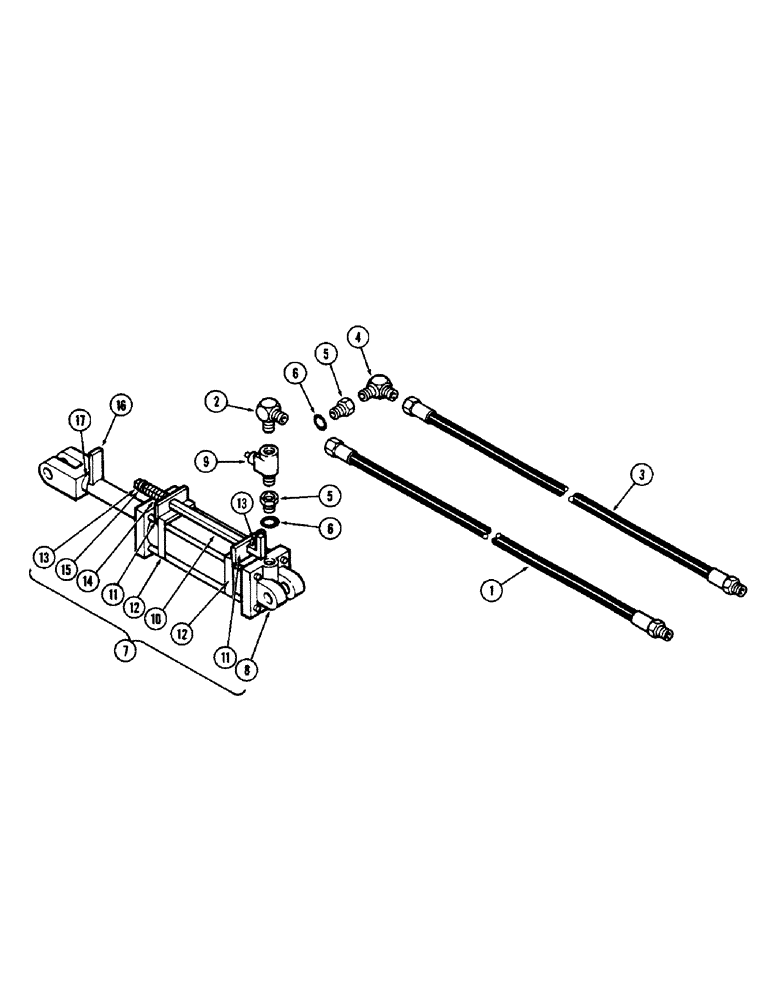

Запчасти Case IH DOT 17 (11C) - DEPTH CONTROL ASSEMBLY, AUTOMATIC

1

T57413

HOSE - 3/8 x 162" (9.5 x 4114.8 MM)

1шт.

2

T57414

ELBOW - restrictor 1/2 x 3/8"

1шт.

3

T57418

HOSE - 1/2 x 174" (12.7 x 4419.6 MM)

1шт.

4

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 1/2 x 3/8"

1шт.

5

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

ADAPTER ASSEMBLY - 1/2"

2шт.

7

T57412

CYLINDER ASSEMBLY - depth control

1шт.

8

T56444

CYLINDER - (See page 12)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - control

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - control

1шт.

11

NSS

NOT SOLD SEPARAT

GUIDE - rod

2шт.

12

NSS

NOT SOLD SEPARAT

CLAMP - 6"

2шт.

13

NSS

NOT SOLD SEPARAT

PIN - cotter 1/8 x 1-1/8"

2шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - 15/16 x 7/16 x 16 gauge

1шт.

16

NSS

NOT SOLD SEPARAT

PADDLE

1шт.

17

NSS

NOT SOLD SEPARAT

CLAMP - 2-1/4"

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
