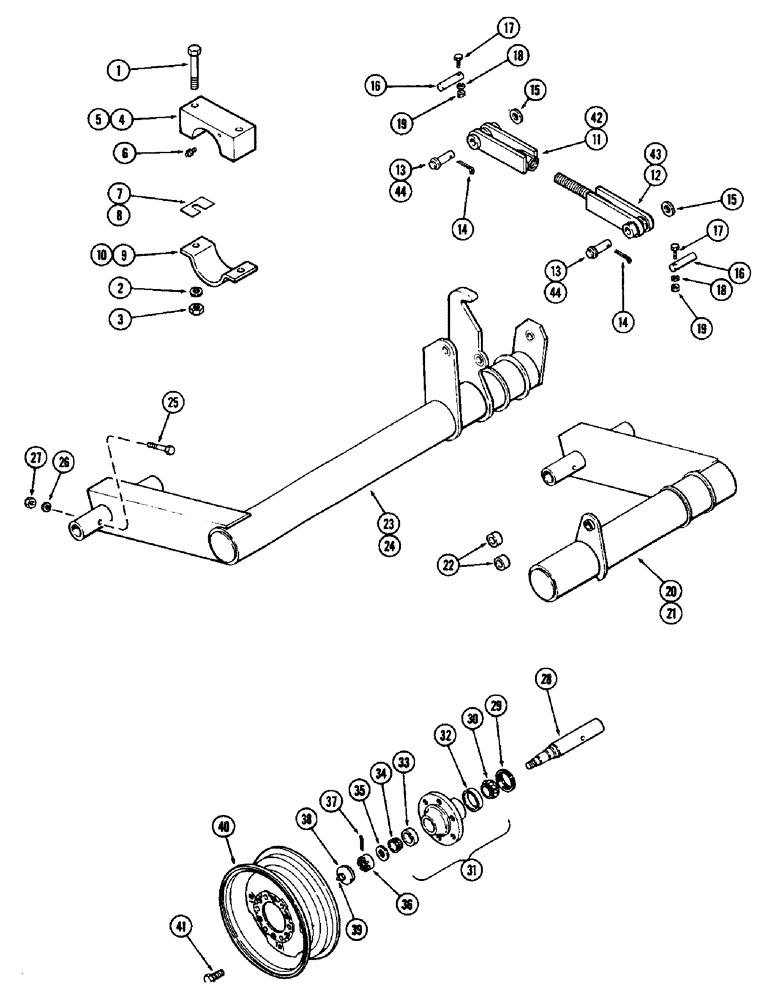

Запчасти Case IH DOT 17 (06) - AXLES AND WHEELS

1

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

3

129-108

NUT,3/4"-10, G5

8шт.

4

T54948

BEARING

- axle 4-1/2" (114.3 MM) diameter (Prior to serial number 1620463)

4шт.

5

T54947

BEARING

- axle 5-1/2" (139.7 MM) diameter (Serial number 1620463 and after)

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

7

T56224

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 12 gauge

1шт.

8

T56225

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 16 gauge

1шт.

9

T54949

CLAMP - axle bearing 4-1/2" (114.3 MM) diameter (Prior to serial number 1620463)

4шт.

10

T54755

CLAMP

- axle bearing 5-1/2" (139.7 MM) diameter (Serial number 1620463 and after)

4шт.

11

T56536

CONNECTOR, ELEC

CONNECTOR - swivel (Order T57398)

1шт.

12

T56537

ROD

- swivel connector (Order T57399)

1шт.

13

T54735

PIN

- 1 x 3-1/2" (25.4 x 88.9 MM) Use with T56536 and T56537

2шт.

14

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

15

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

2шт.

16

T56626

PIN - 1 x 4" (25.4 x 101.6 MM)

2шт.

17

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

T56530

AXLE - left center (Prior to serial number 1620463)

1шт.

21

T57408

AXLE - left center (Serial number 1620463 and after)

1шт.

22

T55853

BUSHING

2шт.

23

T56531

AXLE - right center (Prior to serial number 1620463)

1шт.

24

T57407

AXLE - right center (Serial number 1620463 and after)

1шт.

25

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

28

T56597

SPINDLE

4шт.

29

T23709

SEAL

- grease

4шт.

30

G57452

ROLLER BEARING

CONE - bearing inner 1-3/8" ID (34.9 MM)

4шт.

31

T27113

HUB

ASSEMBLY - with cups

4шт.

32

G57451

BEARING, CUP

CUP - bearing inner 2-9/16" OD (65.1 MM)

1шт.

33

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

34

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

4шт.

35

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

4шт.

36

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

37

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

4шт.

38

T54729

DUST CAP

CAP ASSEMBLY

4шт.

39

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

40

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.

41

A29912

BOLT

BOLT - hub

24шт.

42

T57398

CONNECTOR, ELEC

CONNECTOR - swivel

1шт.

43

T57399

ROD

- swivel connecotor

1шт.

44

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM) Use with T57398 and T57399

2шт.
