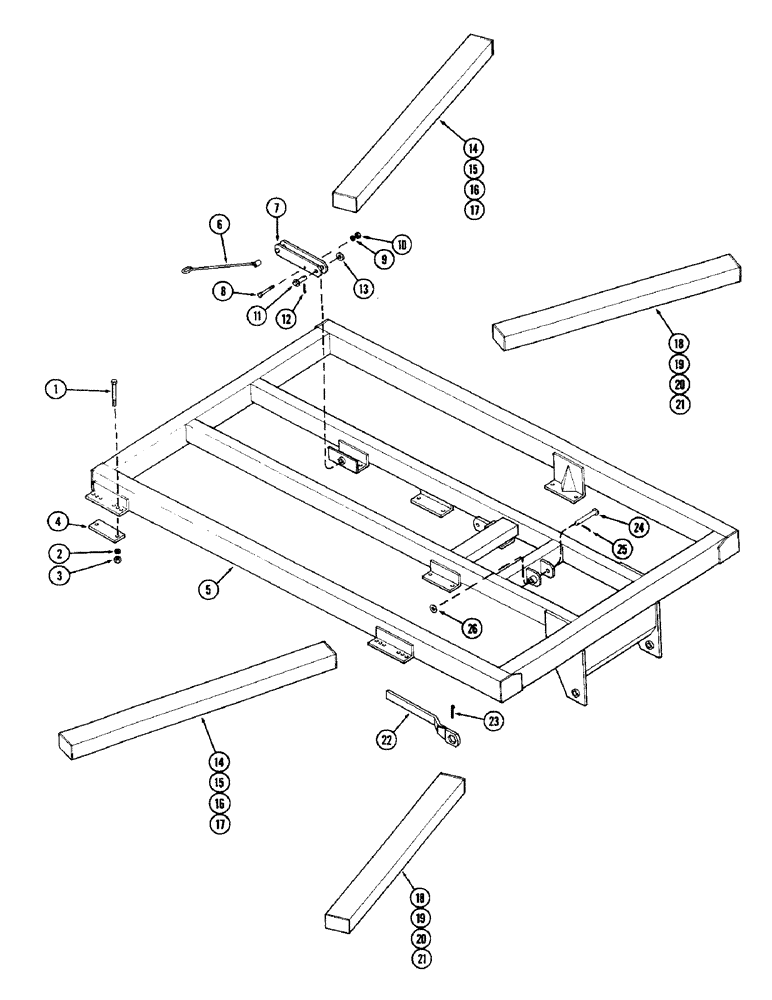

Запчасти Case IH DOT 17 (04) - MAIN FRAME AND GANG BEAMS

1

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

16шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

3

129-108

NUT,3/4"-10, G5

16шт.

4

T55767

PLATE - clamp

8шт.

5

T56701

FRAME - mount

1шт.

6

T56226

HANDLE - axle lockout

1шт.

7

T55762

LOCKOUT - axle

1шт.

8

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

T54735

PIN

- 1 x 3-1/2" (25.4 x 88.9 MM)

1шт.

12

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

13

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

14

T56534

GANG - rear 75" (1905.0 MM) model 17-13

2шт.

15

T56538

GANG - rear 84" (2133.6 MM) model 17-14

2шт.

16

T56539

GANG - rear 93" (2362.2 MM) model 17-16

2шт.

17

T56540

GANG - rear 101" (2565.4 MM) model 17-17

2шт.

18

T56533

GANG - front 65-13/16" (1671.6 MM) model 17-13

2шт.

19

T56534

GANG - front 75" (1905.0 MM) model 17-14

2шт.

20

T56538

GANG - front 84" (2133.6 MM) model 17-16

2шт.

21

T56539

GANG - front 93" (2362.2 MM) model 17-17

2шт.

22

T55436

WRENCH

1шт.

23

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

24

T57405

PIN - 1 x 6-3/4" (25.4 x 171.5 MM)

1шт.

25

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

26

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.
