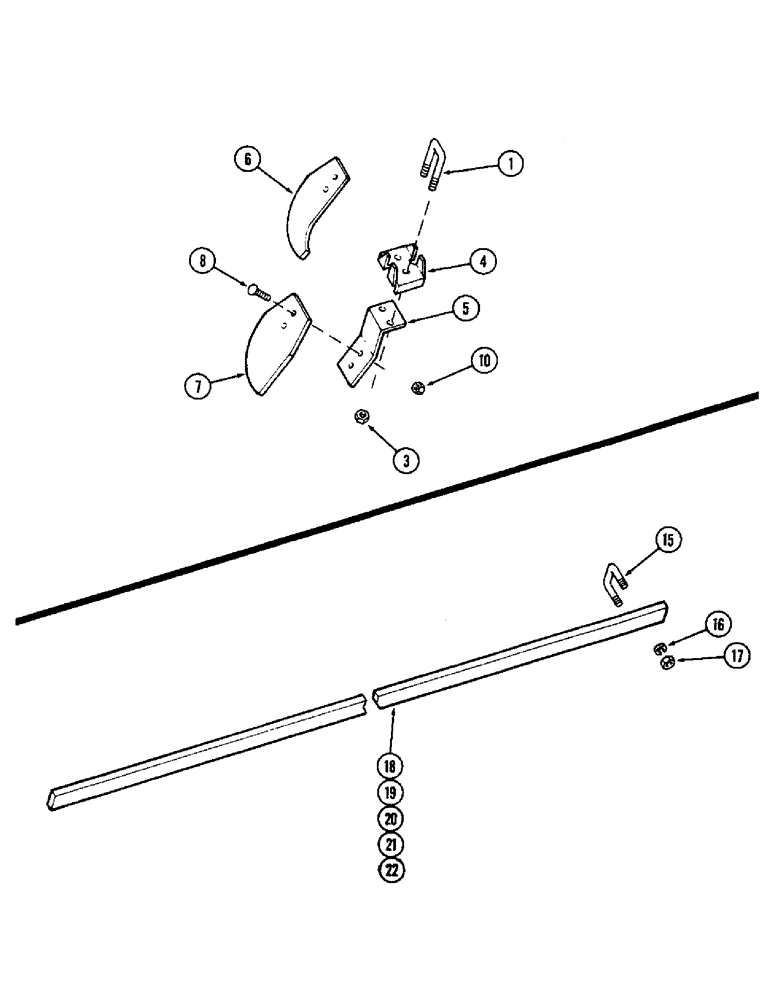

Запчасти Case IH DOT 17 (48) - SCRAPERS, FRONT AND REAR

1

T54785

BOLT

U-BOLT

1шт.

3

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

4

T55808

CLIP

- scraper arm

1шт.

5

T54789

ARM

- scraper

1шт.

6

T54790

HALF BLADE

BLADE - scraper bearing stand

1шт.

7

T54788

HALF BLADE

BLADE - scraper

1шт.

8

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

2шт.

10

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

15

T54786

BOLT

U-BOLT - (Models 17-13, 17-14, 17-16 and 17-17), scraper bars

3шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars 1/2"

6шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars 1/2"-13, G5

6шт.

15

T54786

BOLT

U-BOLT - ( Model 17-17), scraper bars

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars 1/2"

8шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars 1/2"-13, G5

8шт.

18

T54898

BAR - scraper 70" (1778.0 MM) front RH and LH model 17-13

2шт.

19

T54921

BAR - scraper 78" (1981.2 MM) front RH and LH model 17-14

2шт.

19

T54921

BAR - scraper 78" (1981.2 MM) rear RH and LH model 17-13

2шт.

20

T55822

BAR - scraper 97" (2463.8 MM) rear RH and LH model 17-16

2шт.

20

T55822

BAR - scaper 97" (2463.8 MM) front RH and LH model 17-17

2шт.

21

T55821

BAR - scraper 89" (2260.6 MM) front RH and LH model 17-16

2шт.

21

T55821

BAR - scraper 89" (2260.6 MM) rear RH and LH model 17-14

2шт.

22

T55830

BAR - scraper 108" (2734.2 MM) rear RH and LH model 17-17

2шт.
