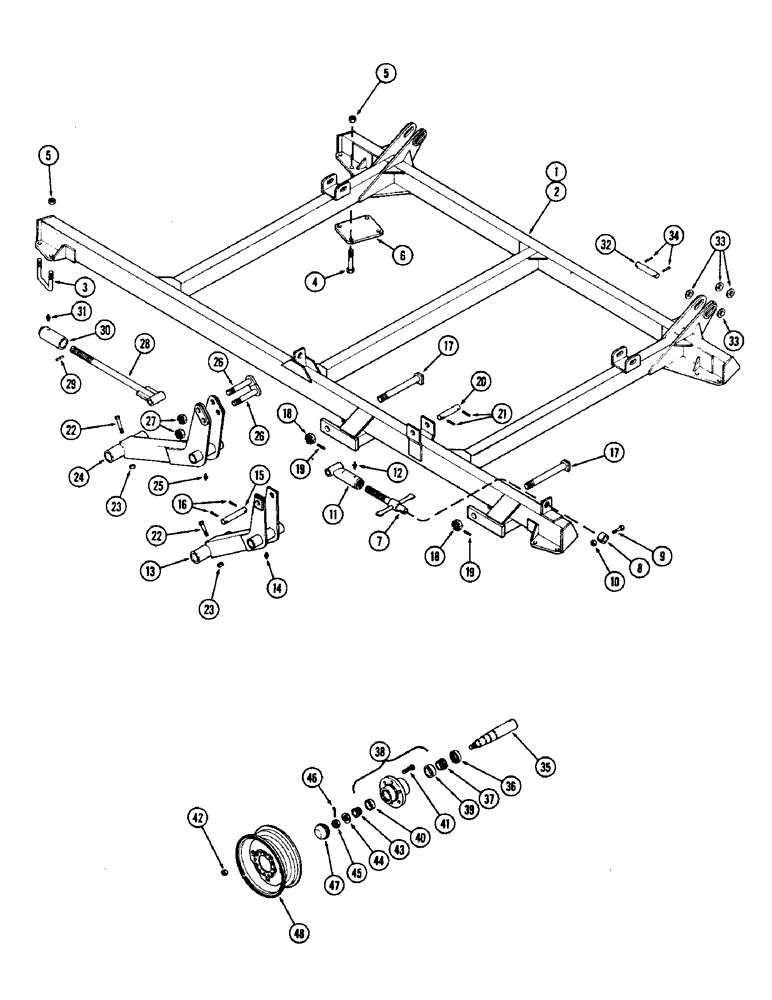

Запчасти Case IH D39 (12) - WING FRAMES & WHEELS, MODELS 414 & 468

1

T56365

FRAME - wing RH

1шт.

2

T56371

FRAME - wing LH

1шт.

3

T56254

BOLT

U-BOLT

8шт.

4

113-817

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

- 7/8 x 5-1/2" NC hex (Grade 5)

16шт.

5

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

32шт.

6

T56351

PLATE

4шт.

7

T56368

JACK - screw

2шт.

8

T56367

SLEEVE

2шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

10

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

2шт.

11

T56369

SLEEVE - jack screw

2шт.

12

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

13

T56366

MOUNT - gauge wheel

2шт.

14

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

15

T56317

PIN - 1-1/4 x 7-3/8" (31.8 x 187.3 MM)

2шт.

16

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

17

T52676

PIN - wing pivot

4шт.

18

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

4шт.

19

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

20

T56313

PIN - 1-1/4 x 6-3/8" (31.8 x 161.9 MM)

2шт.

21

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

22

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

6шт.

23

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

6шт.

24

T56344

MOUNT - wing wheel

2шт.

25

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

26

T56342

PIN

- 1-1/4 x 8-3/8" (31.8 x 212.7 MM) (Prior to serial no. 1637742)

4шт.

27

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex (Prior to serial no. 1637742)

4шт.

28

T56354

BAR

- wing depth gauge (Prior to serial no. 1637742)

2шт.

29

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (Prior to serial no. 1637742) 5/16" x 2 1/4", Slotted

2шт.

30

T56346

STOP

- depth gauge (Prior to serial no. 1637742)

2шт.

31

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" (Prior to serial no. 1637742)

2шт.

32

T56249

PIN - 1-1/4 x 6-7/8" (31.8 x 174.6 MM)

4шт.

33

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

16шт.

34

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

8шт.

35

T52707

SPINDLE

6шт.

36

T30028

SEAL

- grease

6шт.

37

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 MM)

6шт.

38

T55906

HUB

ASSEMBLY - with cups, bolts and nuts

6шт.

39

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 MM)

1шт.

40

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 MM)

1шт.

41

E16592

WHEEL BOLT

BOLT - hub

6шт.

42

F23214

WHEEL NUT

- hub bolt

6шт.

43

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 MM)

6шт.

44

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

6шт.

45

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

6шт.

46

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

6шт.

47

G57436

CYLINDER END CAP

CAP - hub

6шт.

48

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

6шт.
