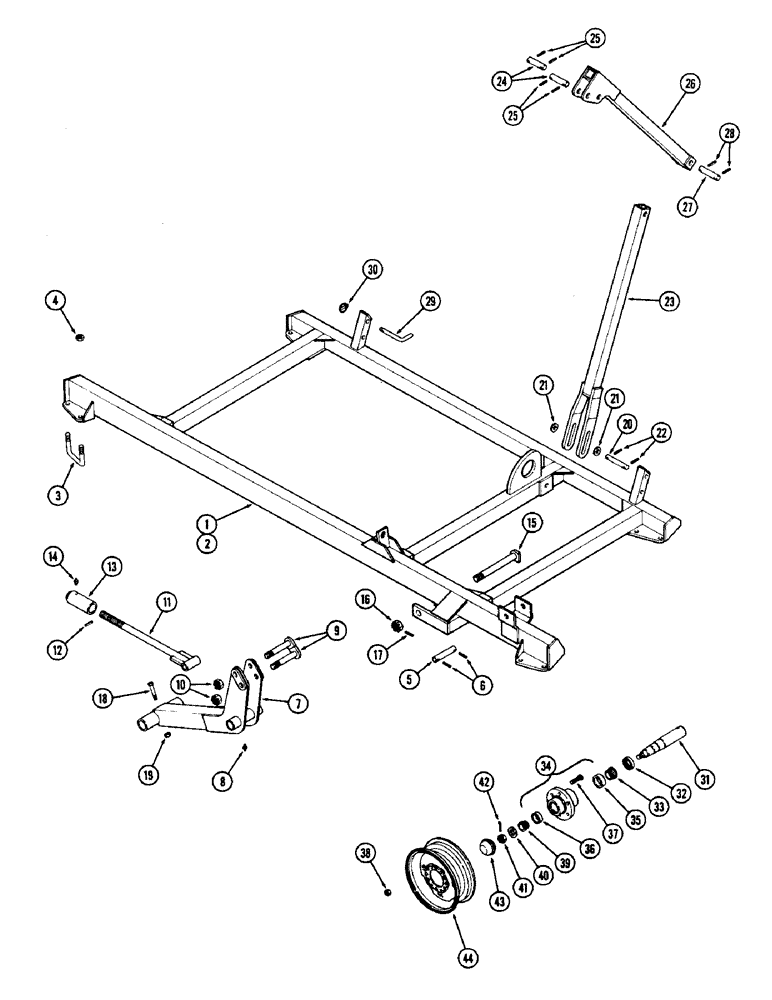

Запчасти Case IH D39 (10) - WING FRAMES & WHEELS, MODELS 324 & 360

1

T56350

FRAME - wing RH

1шт.

2

T56364

FRAME - wing LH

1шт.

3

T56254

BOLT

U-BOLT

16шт.

4

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

32шт.

5

T56313

PIN - 1-1/4 x 6-3/8" (31.8 x 161.9 MM)

2шт.

6

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

7

T56344

MOUNT - wheel

2шт.

8

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

9

T56342

PIN

- 1-1/4 x 8-3/8" (31.8 x 212.7 MM) (Prior to serial no. 1637742)

4шт.

10

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex (Prior to serial no. 1637742)

4шт.

11

T56354

BAR

- wing depth gauge (Prior to serial no. 1637742)

2шт.

12

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (Prior to serial no. 1637742) 5/16" x 2 1/4", Slotted

2шт.

13

T56346

STOP

- depth gauge (Prior to serial no. 1637742)

2шт.

14

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" (Prior to serial no. 1637742)

2шт.

15

T52676

PIN - wing pivot

2шт.

16

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

2шт.

17

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

18

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

19

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

4шт.

20

T56359

PIN - 1 x 6-3/8" (25.4 x 161.9 MM)

2шт.

21

195-533

WASHER,1/2", SAE

- 2 x 1-1/16" x 12 gauge

4шт.

22

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

23

T56356

ARM - lift outside

2шт.

24

T56357

PIN - 1-1/4 x 4-7/8" (31.8 x 123.8 MM)

4шт.

25

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

8шт.

26

T56355

ARM - lift inside

2шт.

27

T56332

PIN

- 1-1/4 x 5-3/8" (31.8 x 136.5 MM)

2шт.

28

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

29

T56308

PIN - lock

2шт.

30

A30338

PIN

2шт.

31

T52707

SPINDLE

4шт.

32

T30028

SEAL

- grease

4шт.

33

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 MM)

4шт.

34

T55906

HUB

ASSEMBLY - with cups, bolts and nuts

4шт.

35

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 MM)

1шт.

36

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 MM)

1шт.

37

E16592

WHEEL BOLT

BOLT - hub

6шт.

38

F23214

WHEEL NUT

- hub bolt

6шт.

39

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 MM)

4шт.

40

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

4шт.

41

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

42

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

43

G57436

CYLINDER END CAP

CAP - hub

4шт.

44

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.
