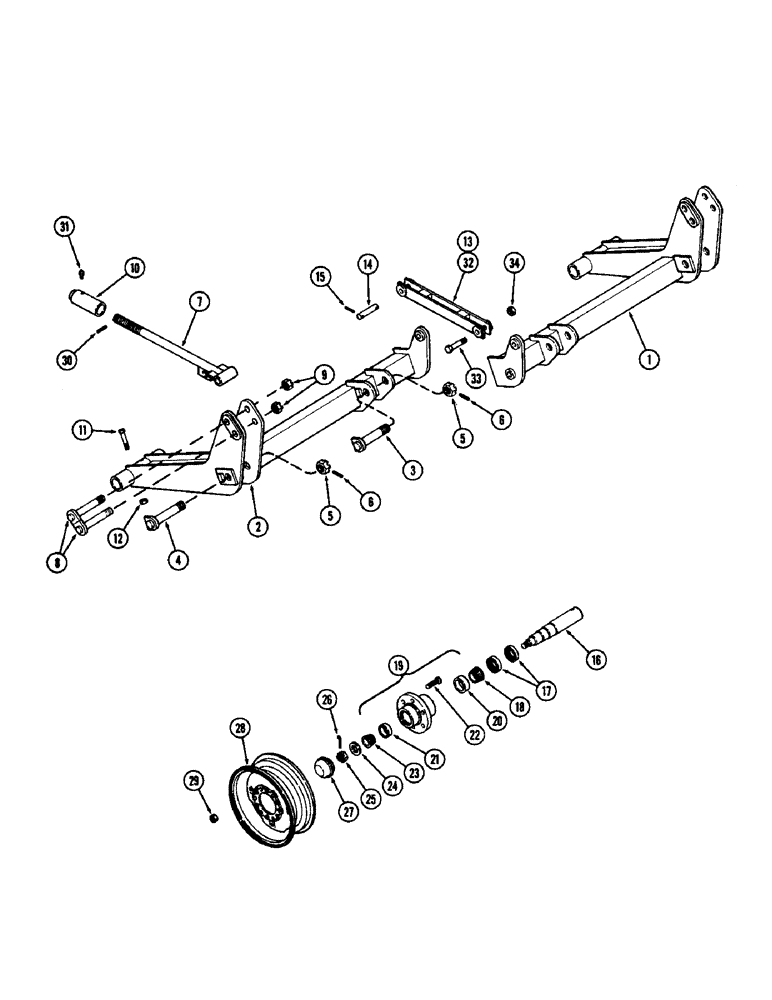

Запчасти Case IH D39 (08) - MAIN ROCKSHAFTS & WHEELS

1

T56336

ROCKSHAFT - LH

1шт.

2

T56335

ROCKSHAFT - RH

1шт.

3

T56240

PIN

- rockshaft pivot inside

2шт.

4

T56337

PIN

- rockshaft pivot outside

2шт.

5

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

4шт.

6

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

7

T56345

BAR

- center depth gauge

2шт.

8

T56342

PIN

- 1-1/4 x 8-3/8" (31.8 x 212.7 MM)

4шт.

9

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

4шт.

10

T56346

STOP

- depth gauge

2шт.

11

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

12

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

4шт.

13

T56652

LINK

- rockshaft (Serial no. 1635510 and after)

1шт.

14

T56242

PIN - 1 x 4-3/8" (25.4 x 111.1 MM) (Serial no. 1635510 and after)

2шт.

15

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (Serial no. 1635510 and after) 5/16" x 2 1/4", Slotted

4шт.

16

T52724

SPINDLE

4шт.

17

F37383

SEAL

- grease

8шт.

18

T33023

ROLLER BEARING

CONE - bearing inner 1-13/16" ID (46.0 MM)

4шт.

19

T52908

HUB

ASSEMBLY - with cups and bolts

4шт.

20

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing inner 3-1/4" OD (82.6 MM)

1шт.

21

A30580

BEARING CUP

CUP - bearing outer 2-7/8" OD (73.0 MM)

1шт.

22

T57455

WHEEL BOLT

BOLT - hub

6шт.

23

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing outer 1-3/8" ID (34.9 MM)

4шт.

24

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

4шт.

25

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

26

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

27

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

4шт.

28

T39714

WHEEL

- 15 x 10" (381.0 x 254.0 MM)

4шт.

29

G49041

WHEEL NUT

- hub bolt

24шт.

30

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

31

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

1шт.

32

T56303

LINK

- rockshaft (Prior to serial no. 1635510) Order 1-T56652, 2-T56242 and 4-138-162

1шт.

33

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

34

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.
