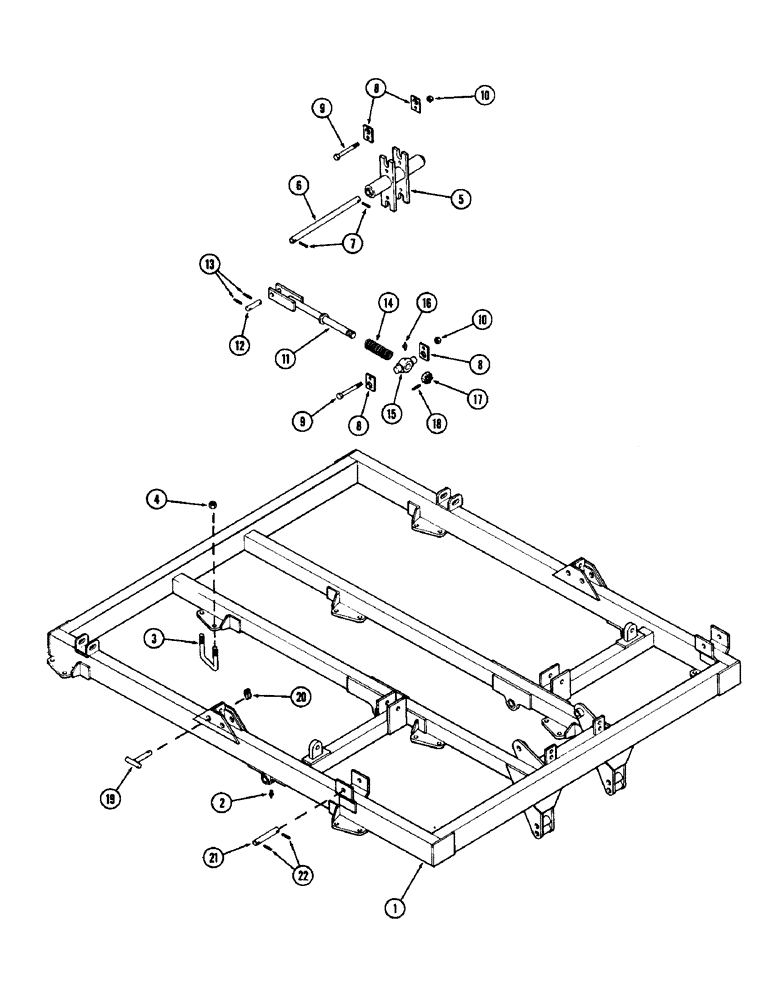

Запчасти Case IH D39 (04) - MAIN FRAME MODELS 324 & 360

1

T56334

FRAME - main

1шт.

2

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

3

T56254

BOLT

U-BOLT

16шт.

4

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

32шт.

5

T56339

BRACKET - pivot

1шт.

6

T56341

PIN - 1-1/4 x 24-1/4" (31.8 x 616.0 MM)

1шт.

7

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

8

T52681

CLAMP

- trunnion

4шт.

9

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

10

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

2шт.

11

T56338

ROD - control

1шт.

12

T56340

PIN - 1 x 3-7/8" (25.4 x 98.4 MM)

1шт.

13

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

14

T51576

SPRING

1шт.

15

T54556

PIVOT

SWIVEL

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

17

129-611

NUT

- 1-3/8" NC hex slotted

1шт.

18

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

19

T55871

PIN

- transport

2шт.

20

A30338

PIN

2шт.

21

T56317

PIN - cylinder mount 1-1/4 x 7-3/8" (31.8 x 187.3 MM)

2шт.

22

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.
