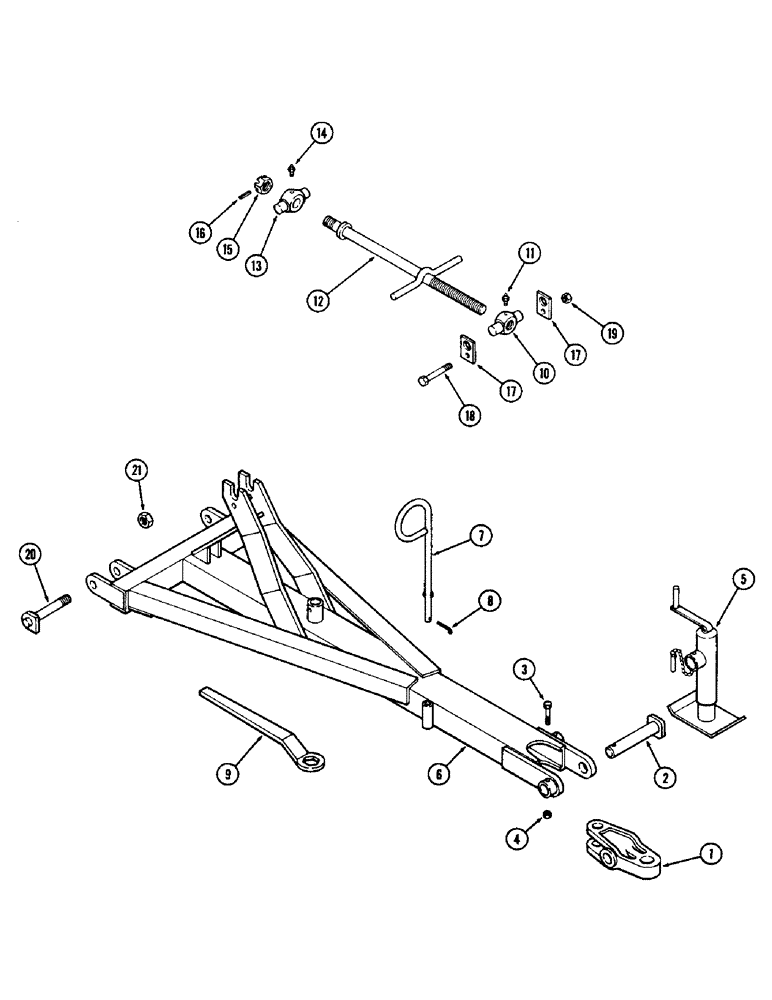

Запчасти Case IH D39 (02) - HITCH

1

T55873

CLEVIS

1шт.

2

T55130

PIN

- clevis

1шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

1шт.

5

T56247

JACK

1шт.

6

T56352

TOW BAR

HITCH

1шт.

7

T53995

HOLDER - hose

1шт.

8

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

9

T54659

WRENCH

1шт.

10

T53870

PIVOT

SWIVEL

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

12

T56353

ROD

- adjusting

1шт.

13

T54556

PIVOT

SWIVEL

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

15

129-611

NUT

- 1-3/8" NC hex slotted

1шт.

16

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

17

T52681

CLAMP

- trunnion

2шт.

18

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

19

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

1шт.

20

T56342

PIN

2шт.

21

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.
