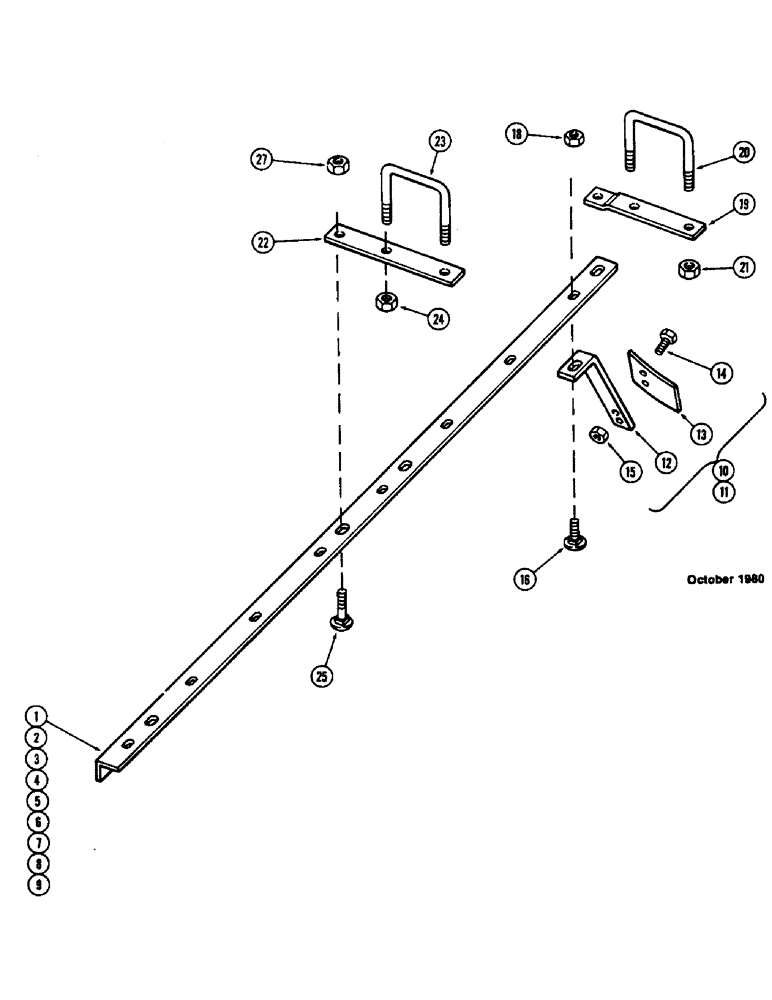

Запчасти Case IH D39 (38) - SCRAPER BARS & SCRAPERS, WING GANG

1

T56267

BAR - scraper front RH and LH 88-7/16" (2246.3 MM) Model 324

2шт.

2

T56329

BAR - scraper rear RH and LH 97-5/8" (2479.7 MM) Model 324

2шт.

3

T56390

BAR - scraper front RH and LH 106-13/16" (2713.0 MM) Model 360

2шт.

4

T56360

BAR - scraper rear RH and LH 116" (2946.4 MM) Model 360

2шт.

5

T56360

BAR - scraper front RH and LH 116" (2946.4 MM) Model 414

2шт.

6

T53190

BAR - scraper rear RH and LH 51-11/16" (1312.9 MM) Model 414

2шт.

7

T53837

BAR - scraper rear RH and LH 70-1/16" (1779.6 MM) Models 414 and 468

2шт.

8

T53837

BAR - scraper front RH and LH 70-1/16" (1779.6 MM) Model 468

4шт.

9

T53187

BAR - scraper rear RH and LH 79-1/4" (2013.0 MM) Model 468

2шт.

10

T55087

SCRAPER

ASSEMBLY - RH

1шт.

11

T55088

SCRAPER

ASSEMBLY - LH

1шт.

12

T55103

SUPPORT ASSY.

SHANK

1шт.

13

T55102

HALF BLADE

BLADE

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

16

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5) (One per scraper)

1шт.

18

131-912

LOCK NUT,Flg, 1/2"-13

NUT - lock 1/2" NC hex (One per scraper)

1шт.

19

T56252

MOUNT - scraper bar rear (Rigid gang) Model 324

2шт.

19

T56252

MOUNT - scraper bar rear (Rigid gang) Models 414 and 468

2шт.

19

T56252

MOUNT - scraper bar front and rear (Rigid gang) Model 360

8шт.

19

T56252

MOUNT - scraper bar front (Rigid gang) Models 414 and 468

4шт.

20

T56686

U-BOLT

(Rigid gang) Model 324

2шт.

20

T56686

U-BOLT

(Rigid gang) Model 360

8шт.

20

T56686

U-BOLT

(Rigid gang) Models 414 and 468

6шт.

21

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per U-bolt)

1шт.

22

T56505

SUPPORT - scraper bar front (Flex gang) Model 324

2шт.

22

T56505

SUPPORT - scraper bar front (Flex gang) Models 360, 414, 468

4шт.

22

T56505

SUPPORT - scraper bar rear (Flex gang) Models 324, 414, 468

2шт.

22

T56505

SUPPORT - scraper bar rear (Flex gang) Model 360

4шт.

23

T56686

U-BOLT

- (Flex gang) Model 324

4шт.

23

T56686

U-BOLT

- (Flex gang) Model 360

8шт.

23

T56686

U-BOLT

(Flex gang) Models 414 and 468

6шт.

24

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per U-bolt)

1шт.

25

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

1шт.

27

131-917

LOCK NUT,Flg, 5/8"-11

NUT - lock 5/8" NC hex (One per bolt)

1шт.
