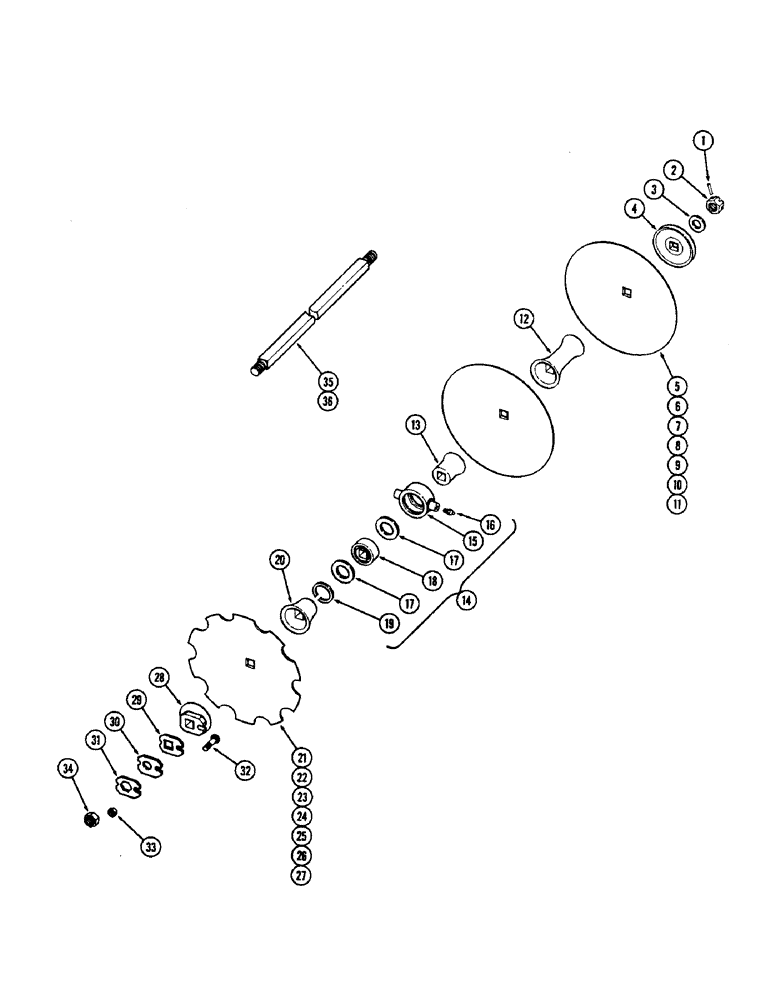

Запчасти Case IH D39 (32) - MAIN GANG, FRONT & REAR

1

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (1 per gang bolt) 5/16" x 2 1/4", Slotted

1шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - gang bolt 1-1/2" NF hex slotted

1шт.

3

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge

1шт.

4

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper

1шт.

5

T55907

DISK HARROW

BLADE - disk 22" (558.8 MM) x 7 gauge solid

1шт.

6

T55915

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid

1шт.

7

T51693

BLADE

- disk 24" (609.6 MM) x 7 gauge solid (Order T55909)

1шт.

8

T55911

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) solid

1шт.

9

T51603

DISK HARROW

BLADE - disk 20" (508.0 MM) x 7 gauge solid (Rear gang)

2шт.

10

T55915

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid (Rear gang)

2шт.

11

T55907

DISK HARROW

BLADE - disk 22" (558.8 MM) x 7 gauge solid (Rear gang)

2шт.

12

T51655

CASTING

SPOOL

1шт.

13

T56687

BELL HOUSING

END SPOOL - small, 4-1/2" OD x 4-15/16" L (if equipped)

1шт.

13

T56270

BELL HOUSING

END SPOOL - small, 4-1/2" OD x 5-3/8" L (if equipped)

1шт.

14

T63287

HOUSING ASSY.

HOUSING AND BEARING ASSEMBLY

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63287)

1шт.

16

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

17

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

18

T56688

BALL BEARING,38.35mm ID x 100mm OD x 44.45mm W

BEARING

1шт.

19

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

20

T56271

BELL HOUSING

END SPOOL - large

1шт.

21

T55908

BLADE

- disk 22" (558.8 MM) x 7 gauge notch

1шт.

22

T55917

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) notch

1шт.

23

T51694

BLADE

- disk 24" (609.6 MM) x 7 gauge notch (Order T55910)

1шт.

24

T55912

PLOW DISC

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) notch

1шт.

25

T51695

DISC

BLADE - disk 20" (508.0 MM) x 7 gauge notch (Rear gang)

2шт.

26

T55908

BLADE

- disk 22" (558.8 MM) x 7 gauge notch (Rear gang)

2шт.

27

T55917

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) notch (Rear gang)

2шт.

28

T54657

WASHER

- end

1шт.

29

T54647

PLATE

- spacer

1шт.

30

T54646

PLATE

- bearing

1шт.

31

T55051

PLATE

- lock

1шт.

32

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5)

1шт.

33

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

1шт.

34

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex

1шт.

35

T51625

BOLT

- gang 70-5/8" (1793.9 MM) Models 324 and 360

4шт.

36

T51639

BOLT

- gang 89-1/8" (2263.8 MM) Models 414 and 468

4шт.
