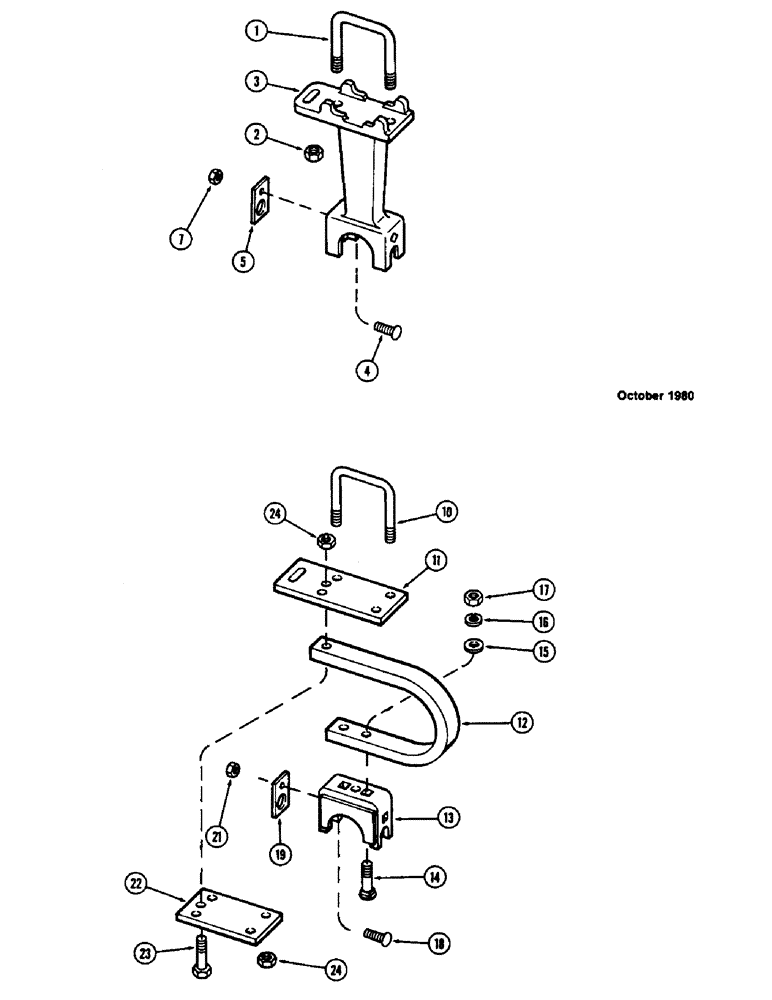

Запчасти Case IH D39 (30) - BEARING STAND, RIGID GANG, BEARING STAND, FLEX GANG

1

T56254

BOLT

U-BOLT

1шт.

2

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

2шт.

3

T57199

RISER

STAND - bearing

1шт.

4

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

2шт.

5

T52681

CLAMP

- trunnion

2шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

2шт.

10

T56502

U-BOLT

bearing stand - flex gang

2шт.

11

T56503

PLATE - top, bearing stand - flex gang

1шт.

12

T56428

SHANK

bearing stand - flex gang

1шт.

13

T56429

MOUNTING PARTS

MOUNT, bearing stand - flex gang

1шт.

14

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carriage (Grade 5), bearing stand - flex gang

2шт.

15

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge, bearing stand - flex gang

2шт.

16

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Bearing stand - flex gang 3/4"

2шт.

17

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" NF hex, bearing stand - flex gang

2шт.

18

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-4/4" NC carriage (Grade 5), bearing stand - flex gang

2шт.

19

T52681

CLAMP

- trunnion, bearing stand - flex gang

2шт.

21

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex, bearing stand - flex gang

2шт.

22

T56504

PLATE - bottom, bearing stand - flex gang

1шт.

23

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Bearing stand - flex gang Hex, 3/4"-10 x 3 1/2", G5

1шт.

24

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex, bearing stand - flex gang

5шт.
