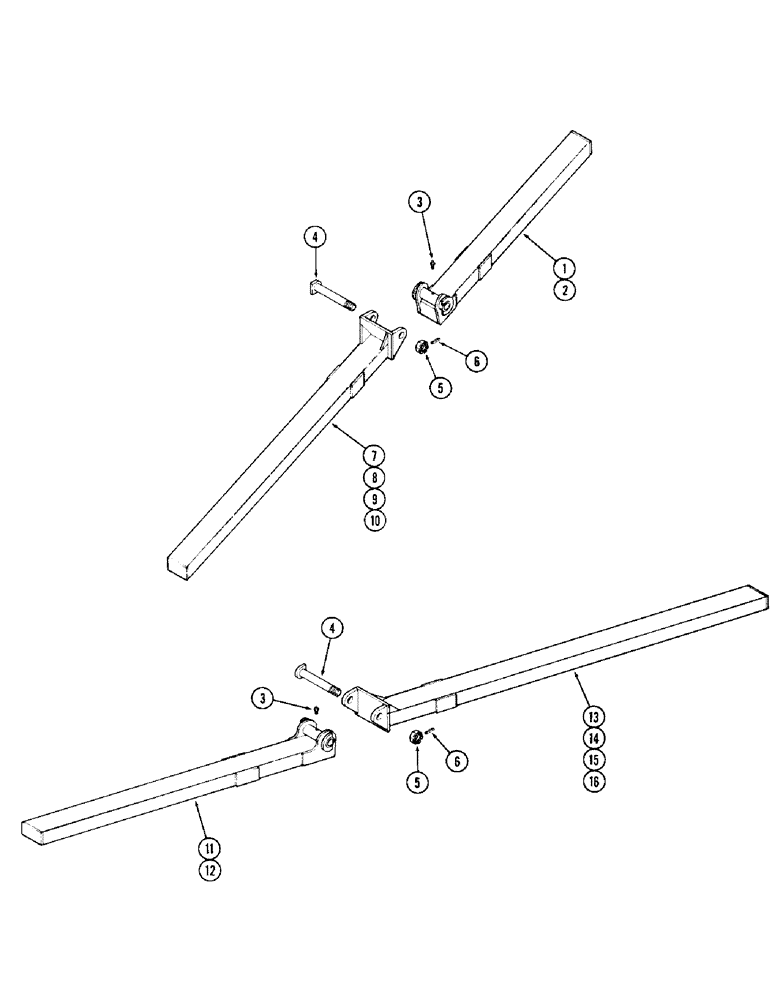

Запчасти Case IH D39 (26) - GANG FRAMES, FRONT

1

T56296

FRAME - gang RH 65-1/2" (1663.7 MM) Models 324 and 360

1шт.

2

T56391

FRAME - gang RH 83-1/2" (2120.9 MM) Models 414 and 468

1шт.

3

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

4

T56297

PIN - wing pivot

2шт.

5

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

2шт.

6

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

7

T56388

FRAME - gang RH 91-1/4" (2317.8 MM) Model 324

1шт.

8

T56389

FRAME - gang RH 109-3/4" (2787.7 MM) Model 360

1шт.

9

T56343

FRAME - gang RH 119" (3022.6 MM) Model 414

1шт.

10

T56395

FRAME - gang RH 146-3/4" (3727.5 MM) Model 468

1шт.

11

T56295

FRAME - gang LH 65-1/2" (1663.7 MM) Models 324 and 360

1шт.

12

T56392

FRAME - gang LH 83-1/2" (2120.9 MM) Models 414 and 468

1шт.

13

T56373

FRAME - gang LH 91-1/4" (2317.8 MM) Model 324

1шт.

14

T56358

FRAME - gang LH 109-3/4" (2787.7 MM) Model 360

1шт.

15

T56311

FRAME - gang LH 119" (3022.6 MM) Model 414

1шт.

16

T56396

FRAME - gang LH 146-3/4" (3727.5 MM) Model 468

1шт.
