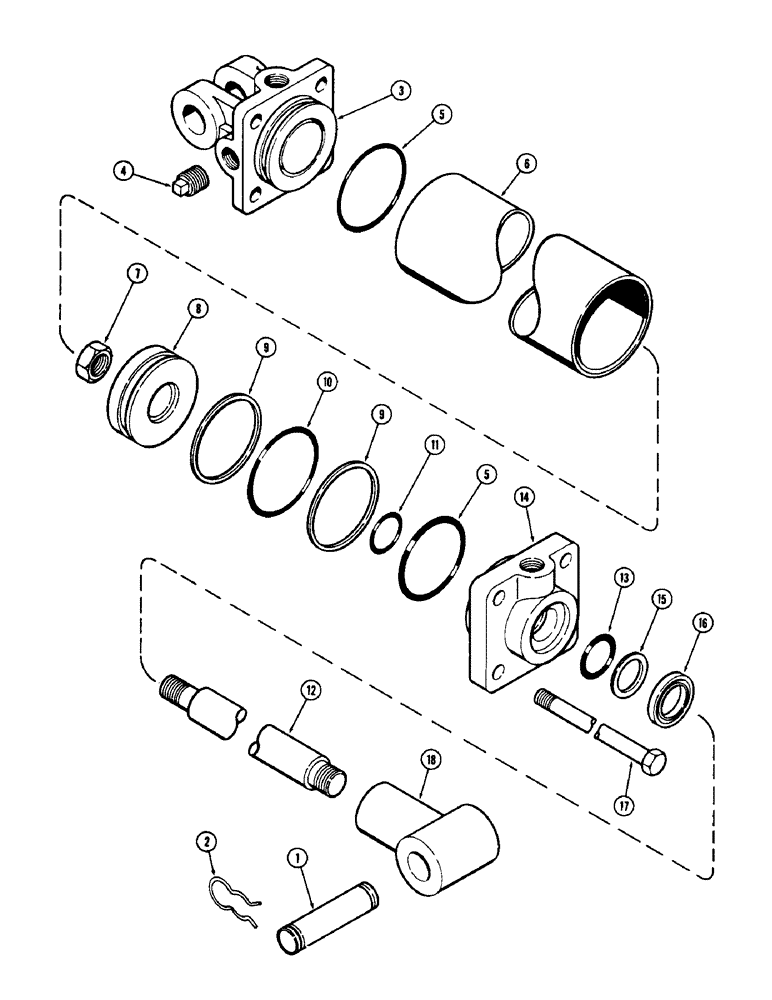

Запчасти Case IH D39 (24) - T52674 CYLINDER 4" X 24" (101.6 X 609.6 MM)

T52674

CYLINDER - hydraulic complete

2шт.

1

T52925

PIN

- clevis

1шт.

2

T52926

CLIP

2шт.

3

T52920

HEAD

BASE - cylinder

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T52928

O-RING

- 3-41/64 x 3-15/64 x .210", 92.5 x 82.2 x 5.6 MM

2шт.

Part of Seal Kit, P/N T63123

1шт.

6

T52919

TUBE - cylinder

1шт.

7

131-1194

LOCK NUT,1 1/4"-12, GA

NUT - piston rod 1-1/4" NF

1шт.

8

T52922

PISTON

1шт.

9

A23535

OIL SEAL

WASHER - backup

2шт.

Part of Seal Kit, P/N T63123

1шт.

10

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- 3-7/8 x 3-1/2 x 3/16" 98.4 x 88.9 x 4.8 MM

1шт.

Part of Seal Kit, P/N T63123

1шт.

11

A59066

O-RING,1.239" ID x 1.379" OD

- 1-3/8 x 1-1/4 x 1/16", 34.9 x 31.8 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63123

1шт.

12

T52918

ROD - piston

1шт.

13

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- 2-1/8 x 1-3/4 x 3/16", 53.9 x 44.5 x 4.8 MM

1шт.

Part of Seal Kit, P/N T63123

1шт.

14

T52921

HEAD

- cylinder

1шт.

15

T52933

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63123

1шт.

16

T52934

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63123

1шт.

17

T52924

ROD - tie

4шт.

18

T52923

CLEVIS

1шт.

T63123

KIT

- seal, Includes: ref. nos. 5, 9, 10, 11, 13, 15, 16

1шт.
