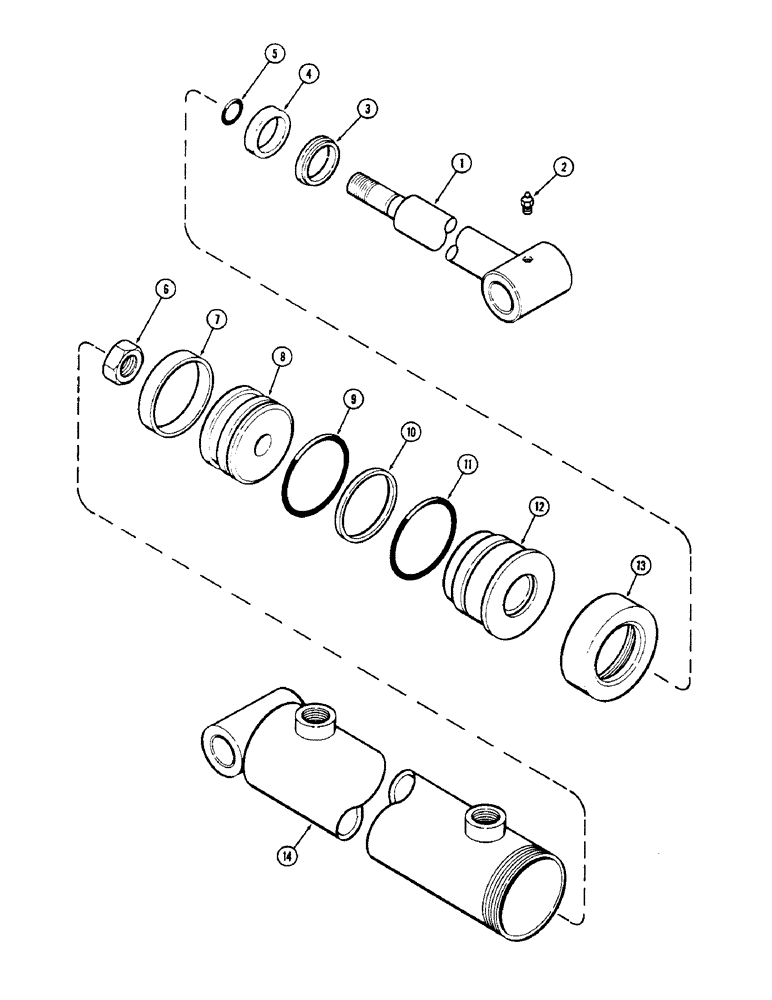

Запчасти Case IH D39 (22) - T56278 CYLINDER 4" X 12" (101.6 X 304.8 MM)

T56278

CYLINDER - hydraulic complete

2шт.

1

T56410

ROD

- piston

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

3

T56412

WIPER

1шт.

Part of Seal Kit, P/N T63274

1шт.

4

T56411

SEAL - rod

1шт.

Part of Seal Kit, P/N T63274

1шт.

5

H744771

O-RING

SEAL - rod

1шт.

Part of Seal Kit, P/N T63274

1шт.

6

131-1196

LOCK NUT,1 1/2"-12, GA

NUT - piston rod 1-1/2" NF

1шт.

7

T56415

STRIP - wear

1шт.

Part of Seal Kit, P/N T63274

1шт.

8

T56408

PISTON

1шт.

9

T56414

O-RING

1шт.

Part of Seal Kit, P/N T63274

1шт.

10

T56413

RING

1шт.

Part of Seal Kit, P/N T63274

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

- 4 x 3-3/4 x 1/8", 101.6 x 95.3 x 3.2 MM

1шт.

Part of Seal Kit, P/N T63274

1шт.

12

T56406

GLAND

HEAD - cylinder

1шт.

13

T56407

COLLAR

1шт.

14

T56409

TUBE - cylinder

1шт.

T63274

KIT

- seal, Includes: ref. nos. 3, 4, 5, 7, 9, 10, 11

1шт.
