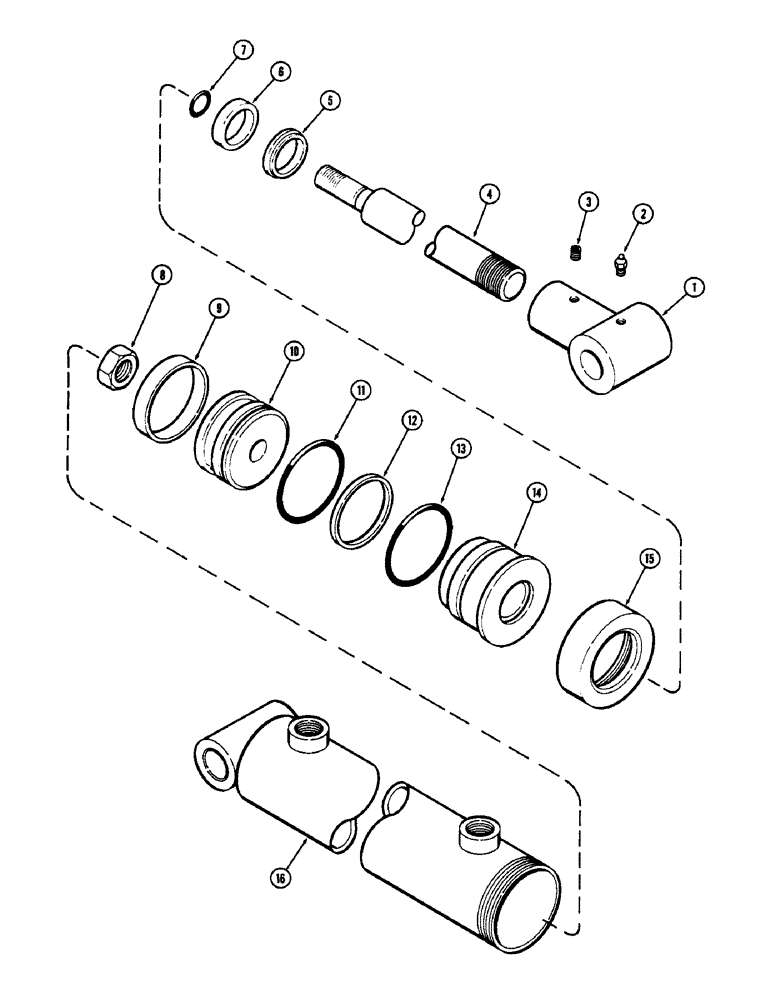

Запчасти Case IH D39 (20) - T56678 CYLINDER 3-1/2" X 12" (88.9 X 304.8 MM)

T56678

CYLINDER

- hydraulic complete

2шт.

1

T56677

MOUNTING PARTS

MOUNT - cylinder rod

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

3

178-878

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

- 5/16 x 5/16" cup point

1шт.

4

T56676

ROD ASSY.

ROD - piston

1шт.

5

H222935

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63273

1шт.

6

H247809

SEAL ASSY.

SEAL - rod

1шт.

Part of Seal Kit, P/N T63273

1шт.

7

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- 1 x 7/8 x 1/16", 25.4 x 22.2 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63273

1шт.

8

131-370

LOCK NUT

NUT - piston rod 1"-14

1шт.

9

T56403

STRIP - wear

1шт.

Part of Seal Kit, P/N T63273

1шт.

10

T56400

PISTON

1шт.

11

T56404

O-RING

1шт.

Part of Seal Kit, P/N T63273

1шт.

12

T56405

RING

1шт.

Part of Seal Kit, P/N T63273

1шт.

13

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- 3-1/2 x 3-1/4 x 1/8", 88.9 x 82.6 x 3.2 MM

1шт.

Part of Seal Kit, P/N T63273

1шт.

14

H254763

GLAND

HEAD - cylinder

1шт.

15

T56399

COLLAR

1шт.

16

T56401

TUBE - cylinder

1шт.

T63273

KIT

- seal, Includes: ref. nos. 5, 6, 7, 9, 11, 12, 13

1шт.
