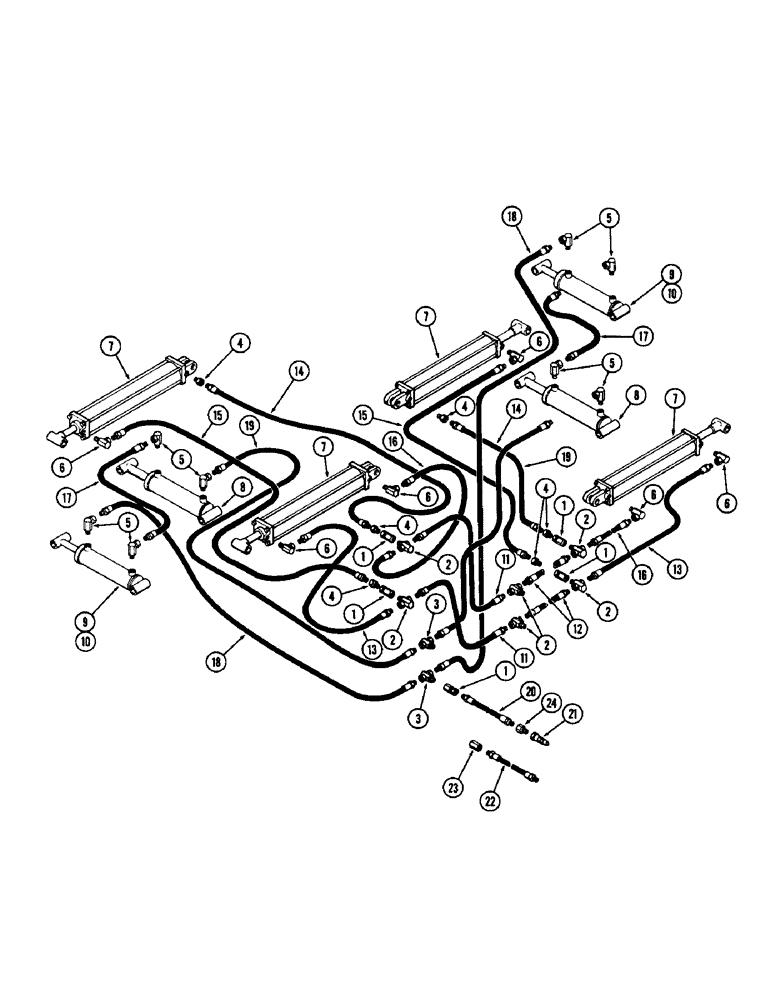

Запчасти Case IH D39 (16) - HYDRAULICS, MODELS 414 & 468

1

218-911

HYD CONNECTOR,Sw, 1/2" NPT Fem x 1/2" NPSM Fem

UNION - swivel 1/2"

8шт.

2

T55104

FITTING

- 1/2 to 1/4" (12.7 to 6.4 MM)

6шт.

3

218-953

TEE

FITTING - 1/2 x 1/2"

2шт.

4

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer 1/2 to 1/4"

6шт.

5

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2 x 1/2"

8шт.

6

218-922

ELBOW,90 Degree, 1/2" NPTF Male x 1/4" NPSM Fem Sw

- swivel 1/2 to 1/4"

6шт.

7

T52674

CYLINDER - hydraulic 4 x 24" (101.6 x 609.6 MM) (See page 24)

4шт.

8

T56278

CYLINDER - hydraulic 4 x 12" (101.6 x 304.8 MM) (See page 22)

2шт.

9

T56277

CYLINDER

- hydraulic 3-1/2 x 12" (88.9 x 304.8 MM) Used before November 1978 (See page 18)

2шт.

10

T56678

CYLINDER

- hydraulic 3-1/2 x 12" (88.9 x 304.8 MM) Used November 1978 and after (See page 20)

2шт.

11

T55105

HOSE - hydraulic 1/4 x 48" (6.4 x 1219.2 MM)

2шт.

12

T56326

HOSE - hydraulic 1/4 x 24" (6.4 x 609.6 MM)

2шт.

13

T55145

HOSE

- hydraulic 1/4 x 36" (6.4 x 914.4 MM)

2шт.

14

T56361

HOSE - hydraulic 1/4 x 108" (6.4 x 2743.2 MM)

2шт.

15

T56374

HOSE - hydraulic 1/4 x 120" (6.4 x 3048.0 MM)

2шт.

16

T56325

HOSE - hydraulic 1/4 x 15" (6.4 x 381.0 MM)

2шт.

17

T56376

HOSE - hydraulic 3/8 x 156" (9.5 x 3962.4 MM)

2шт.

18

T56377

HOSE - hydraulic 3/8 x 216" (9.5 x 5486.4 MM)

2шт.

19

T56362

HOSE - hydraulic 3/8 x 66" (9.5 x 1676.4 MM)

2шт.

20

T56419

HOSE - hydraulic 1/2 x 144" (12.7 x 3657.6 MM)

4шт.

21

A147889

COUPLING, BREAK AWAY

COUPLER - male

4шт.

22

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 - Extension 31.00"

4шт.

23

A135110

ADAPTER

- hose 1/2 to 7/8" (12.7 to 22.2 MM)

4шт.

B17426

GASKET MAKER FLUID

SEALANT - pipe (Not illustrated)

1шт.
